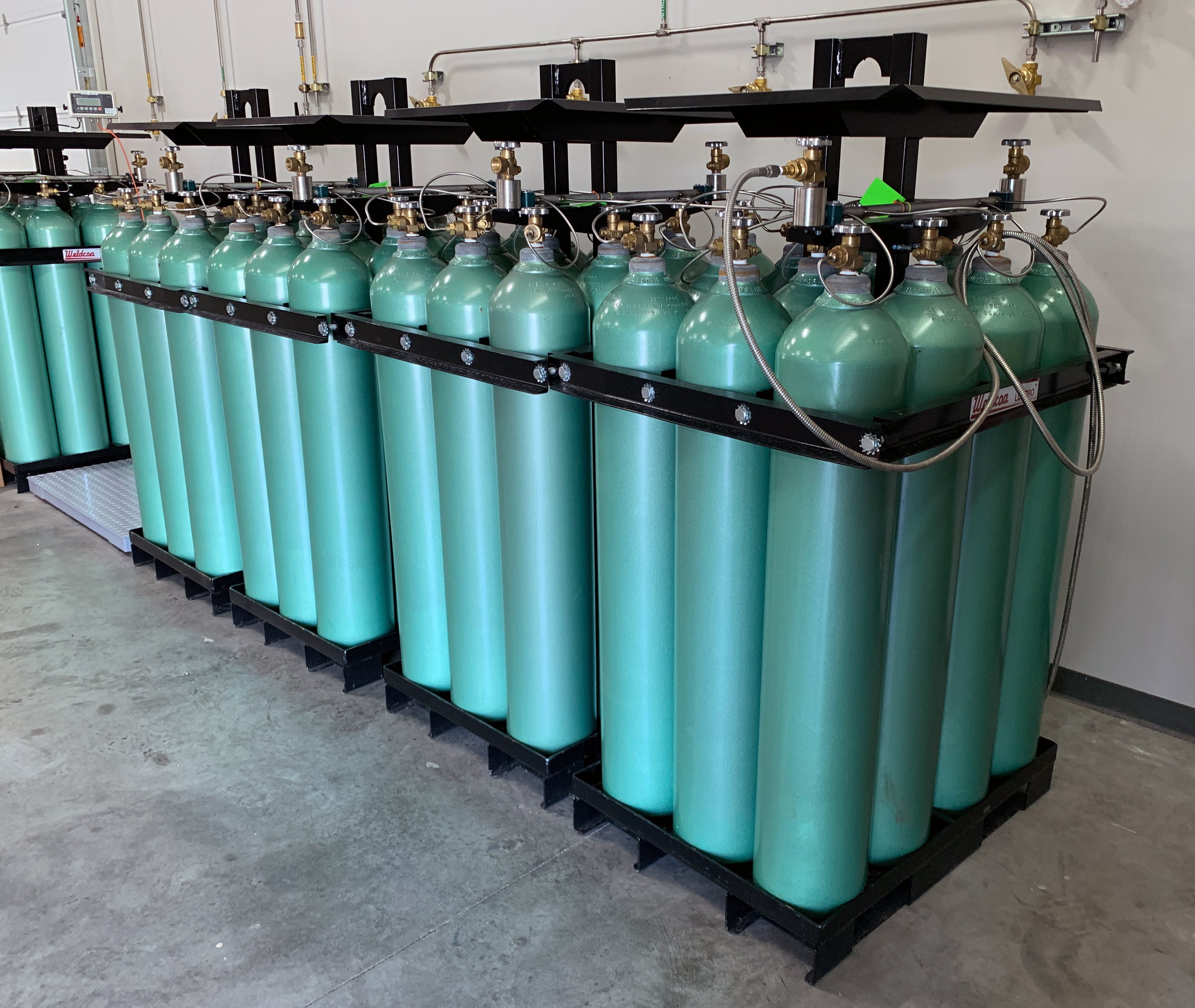

SAME PROVEN LOWPRO GAS PACK DESIGN, NOW WITH A NEW BASE OPTION

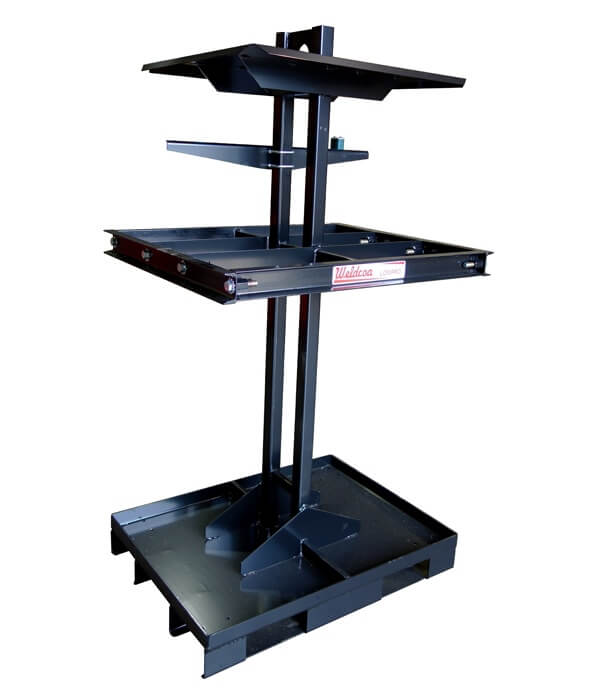

• Standard cart design includes a preformed, lasered “A” size base accommodating 8.75” to 9.5” OD cylinders. “B”, “C” and “D” size bases are available upon request for larger OD cylinder needs.
• Additional options such as D-Rings and a Secondary Clamp are also available upon request.
• Entire cart frame is professionally powder coated to protect from wear, corrosion, impact, and weather.
• Galvanizing is an available option for high corrosive environments.

• Compliant with DOT Guidelines

Features and Benefits

• 4-Way forklift and pallet jack accessible from the bottom

• The lasered cut and press brake formed hood on the top of the gas pack provides overhead protection to the cylinders, leads, valves and manifolds from either a crane or a forklift during transit.

• A crane lifting eye is incorporated into the upright structural tubing

• Sturdy exterior frame with cylinder clamp design made specifically to reduce potential cylinder rotation, stress and/or vibration inflicted onto the leads attached to the cylinders in the carts during transit.

• Adjustable manifold bracket can be positioned up or down accommodating different cylinder heights and has also been redesigned to universally accommodate most Weldcoa manifolds including Block, Brass, Stainless Steel and Monel 400 models with Rigid or Flexible Leads.

• Available with or without a manifold assembly

• The entire manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards.

• Made in the USA

What to expect from Weldcoa

All Weldcoa Gas Packs are fully built 100% at Weldcoa. If a manifold assembly is included, they are tested, oxygen cleaned, bagged and tagged. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.
