INDIVIDUALLY SECURED

Each "B' size acetylene cylinder is secured and locked within the frame

CAN CARRY UP TO 36 CYLINDERS

Provides a space efficient solution for storing and/or transporting B size acetylene cylinders

MECHANICALLY LOCKS

Weldcoa’s patented Sur-Loc™ pallet system is one of the only systems that mechanically locks onto the transportation structure

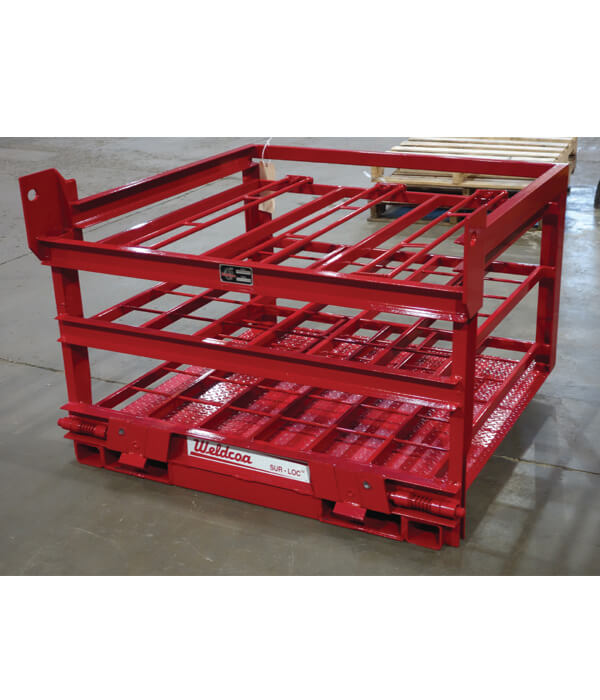

  • Stack-Loc B Pallet A
    high quality product made in-house
    100% made in the usa

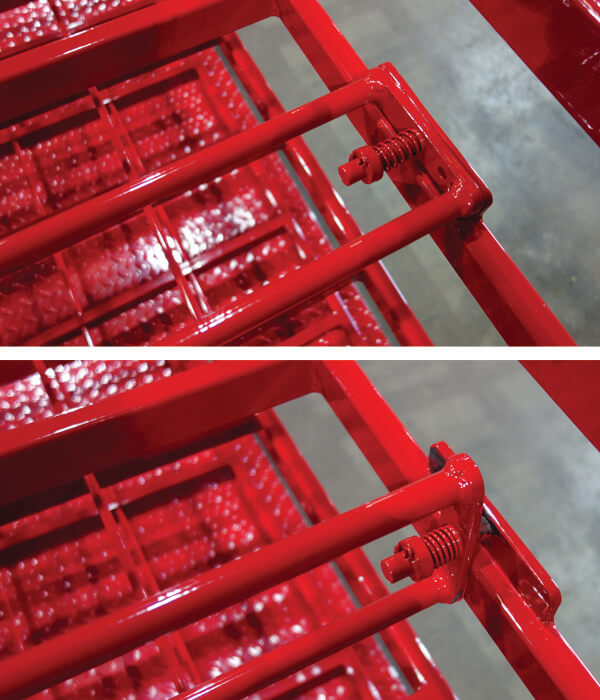

  • Stack-Loc B Pallet frame split
    each cylinder is individually secured within the fame. This prevents the cylinders from escaping but also prevents label damage

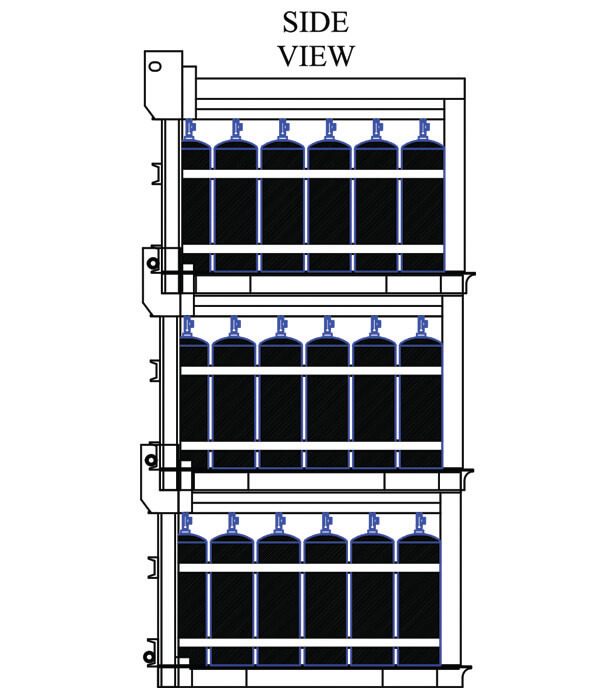

  • Stack-Loc B Pallet Side View
    (3) Stack-loc Acetylene Pallets Stacked - Side View

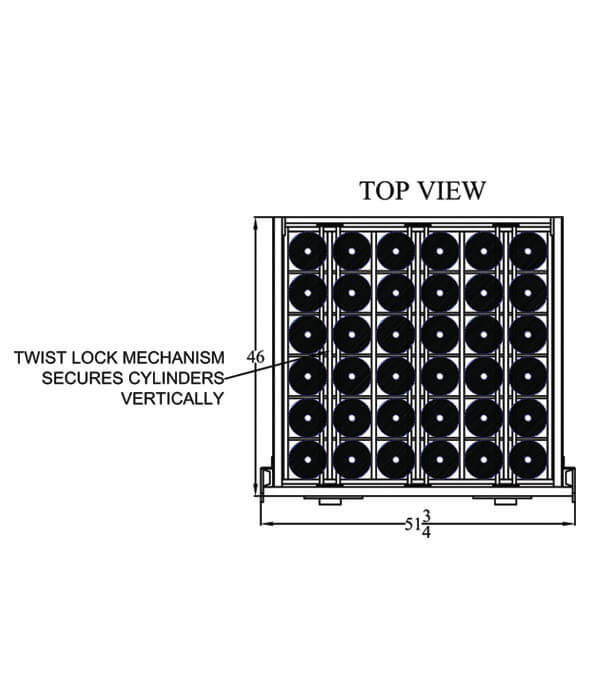

  • Stack-Loc B Pallet Top View
    stack-loc B acetylene pallet - top view

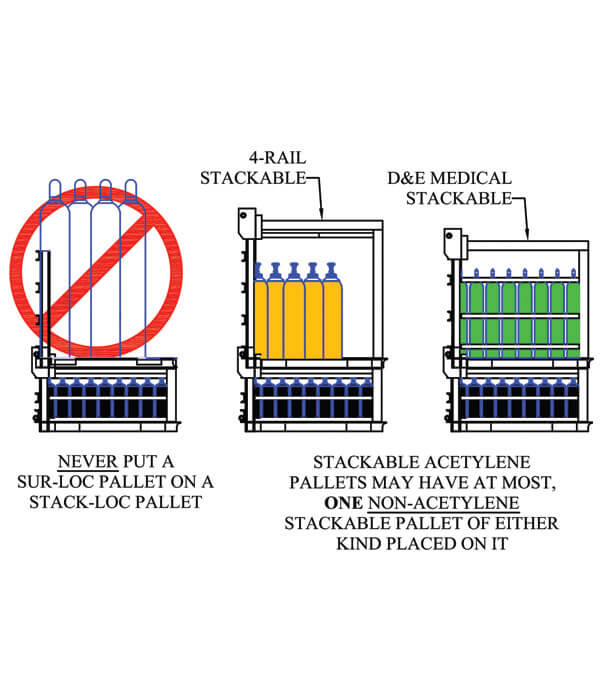

  • Stack-loc B Pallet Guidelines 1
    stack-loc b pallets may have at most, one non-acetylene stack-loc pallet (either a 4-rail tack-loc or medical d&E) placed on it. This particular product is not intended for standard sur-loc pallets.

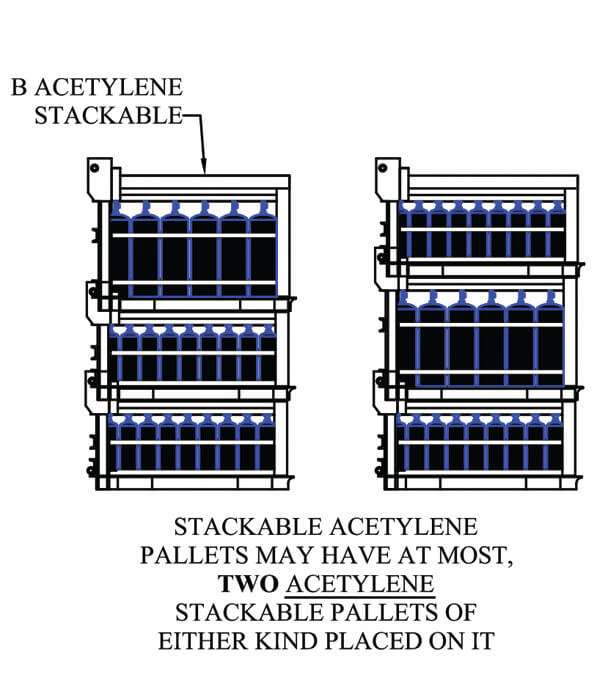

  • Stack-loc B Pallet Guidelines 2
    stack-loc b acetylene pallets can have up to two of either kind, (mc or b) placed on it.


REQUEST A QUOTE



stack-loc™ b acetylene pallets

IPSTBA-BK
Stack-Loc Pallet - B Acetylene Model, Professionally Powder-Coated in Black.

IPSTBA-cr
Stack-Loc Pallet - B Acetylene Model, Professionally Powder-Coated in Cardinal Red.

IPSTBA-SO
Stack-Loc Pallet - B Acetylene Model, Professionally Powder-Coated in Safety Orange.

IPSTBA-WB

Stack-Loc Pallet - B Acetylene Model, Professionally Powder-Coated in Weldcoa Blue.

IPSTBA-jg

Stack-Loc Pallet - B Acetylene Model, Professionally Powder-Coated in John Deere Green.




Stack-Loc™ "B" Acetylene Pallet

The Stack-Loc™ "B" Acetylene Pallet model provides a secure, space efficient solution for storing and/or transporting B size Acetylene cylinders. Durable, long lasting product that will provide years of reliable service.


PATENT AND PROVEN 4-POINT LOCKING SYSTEM DESIGN

  • Weldcoa’s patented Sur-Loc™ pallet system is one of the only systems that mechanically locks onto the transportation structure. If the entire truck/trailer structure rotated 180 ̊, the pallets would remain locked onto the frame.
  • All Weldcoa pallets have 4-way entry and are self-aligning when positioned into a pallet truck or trailer.
  • The fork pockets are re-enforced to eliminate the possibility of broken plates.
  • Automatic Safety Feature - Pallet truck forks automatically engage and disengage the mechanical locks.
  • Visible Safety Check Feature - Drivers and managers can clearly see if the lock mechanism is properly engaged prior to transporting cargo.
  • Compliant with Federal DOT Regulations 49 CFR 393.102 and CFR 177.840

Features and Benefits

  • Holds up to (36) "B"  Acetylene Cylinders
  • Can be stacked (3) Stack-Loc B Pallets high at a time for storage in your facility or yard.  That is 108 "B" Acetylene cylinders in a single pallet footprint!
  • Twist lock mechanism securely locks cylinders vertically onto frame.
  • To protect the cylinder valve, the pallet has been designed with adequate height clearance in mind
  • The pallets lock onto each other in the same way they would be secured on to our pallet trucks and trailers
  • Works with any Weldcoa Sur-Loc™ pallet truck or trailer
  • The B pallet is interchangeable and requires no more skill than what is already required to load a pallet vehicle
  • Each cylinder is individually secured within the Stack-Loc's frame. This prevents the cylinders from escaping but also prevents label damage
  • The deck of the B pallet is 51 3/4" wide x 46" deep
  • The height of a single B pallet is 35 1/2" high
  • The height of two B pallets stacked is 64 3/8" high
  • The height of three B pallets stacked is 93 1/4" high
  • The pallet base is structurally sound
  • A grease reservoir that lubricates all of the moving parts every time the lock is actuated (We recommend using an anti-seize compound rather then grease to lubricate the pallet locks)
  • Entire pallet is professionally powder-coated for protection from wear, corrosion, impact, and weather.
  • Standard powder-coated paint is available in Black, Cardinal Red, Safety Orange, Weldcoa Blue, Safety Yellow and John Deere Green.
  • 100% Made in the USA

phone-call

have a special application?

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.
