18 Cylinder Gas Pack Pallet Manifold

Industrial gas packs manifolds

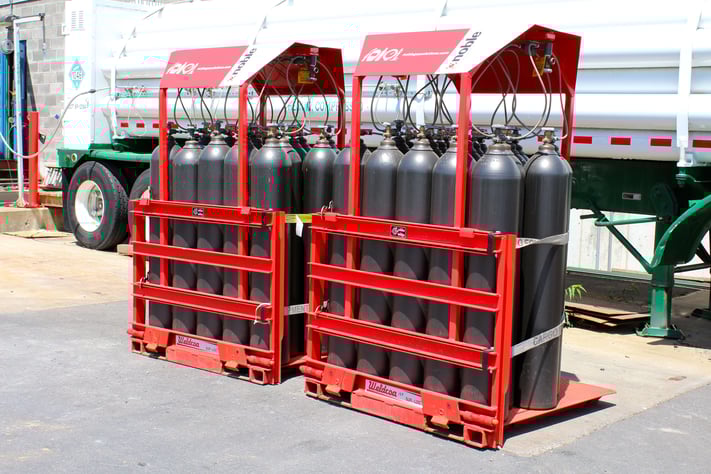

IMG_0462

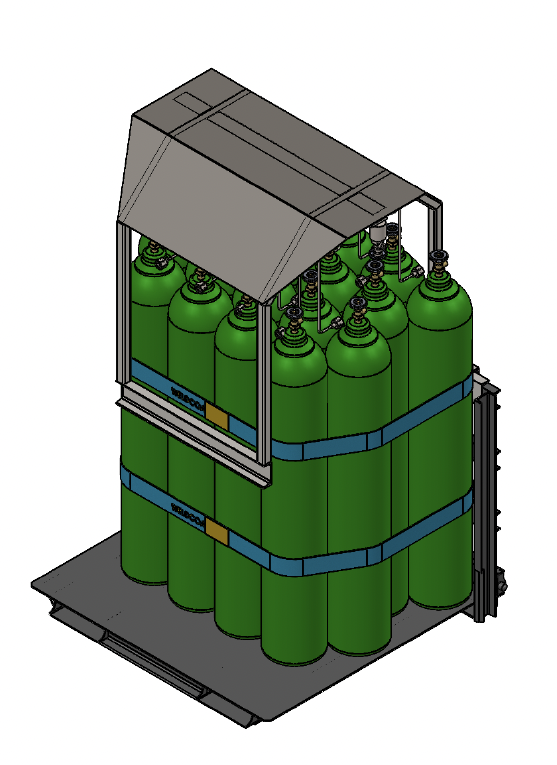

18 Cylinder gas pack pallet manifold

The 18 cylinder pallet manifold is a terrific alternative to costly micro bulk delivery vehicles for safely delivering higher volumes of gas. It includes 3 quality Weldcoa products: Sur-LocTM 3 rail pallet, protective hood and manifold with leads. Once required cylinders are placed on the pallet, the hood with manifold can be easily slipped on for an instant cylinder cluster. Now you only need to move the pallet, not 18 individual cylinders. This has become a standard, rather than an alternative to cylinder carts, for distributors across the country.

SAVES MONEY AND DRASTICALLY IMPROVES EFFICIENCY

The Weldcoa pallet manifold can be positioned into a Weldcoa fill island for efficient filling, and it can also be locked onto a Weldcoa truck or trailer for safe transporting.

By moving from individual cylinders to the clusters, we’ve saved our customers countless hours in labor for cylinder handling. The installations we’ve done allow the customer to no longer have to touch the cylinder. We deliver a new pallet, pick up the old one, and all the customer knows is that their gas supply is constant. As a result, they’re more efficient, and we’re more efficient.

- David Mahoney, President of Noble Gas Solutions

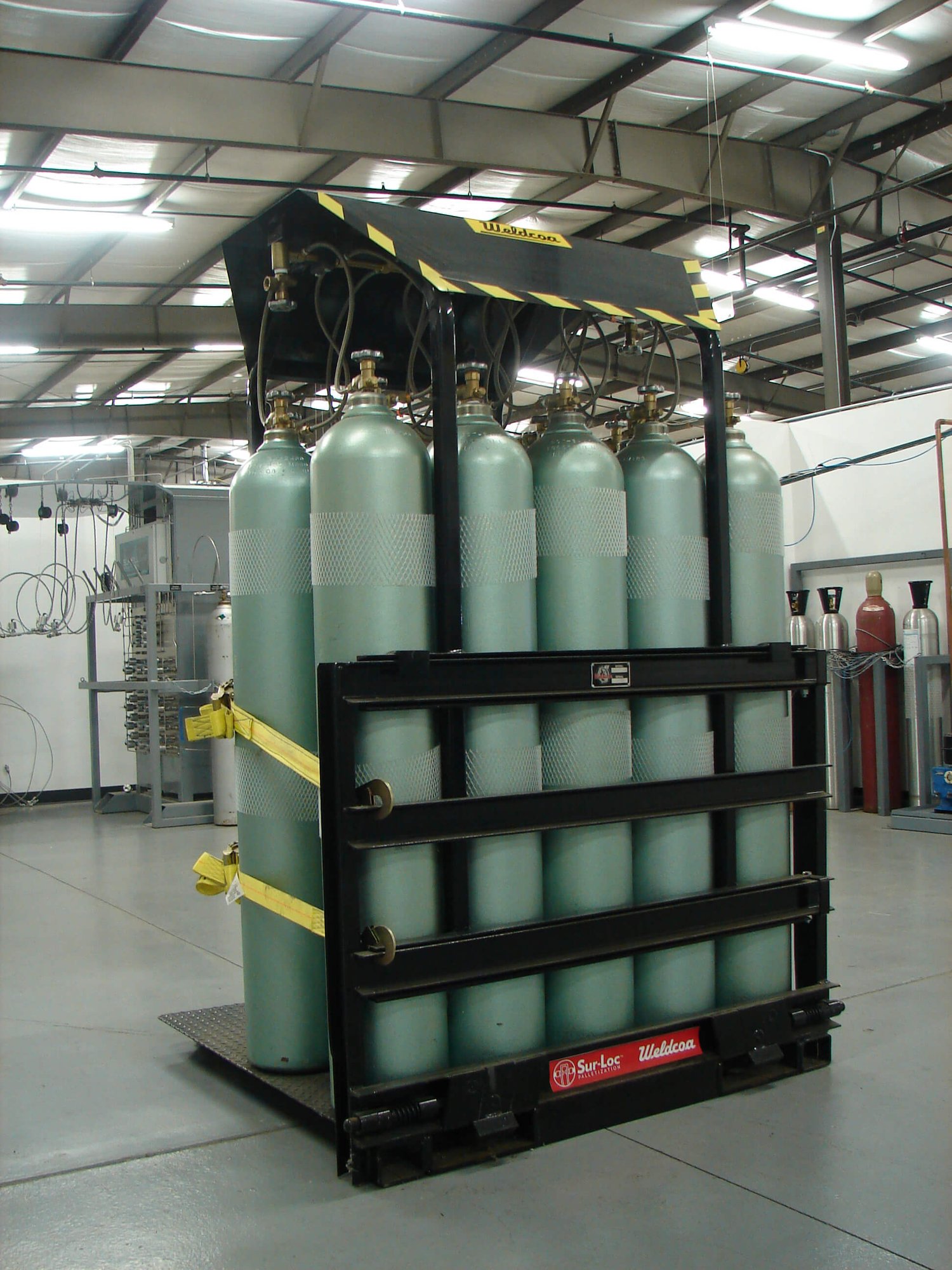

18 Pack Pallet Manifold (1)

DETAILS THAT MAKE THE DIFFERENce

  • Hood provides overhead protection to the cylinder, leads, valves and manifold during transit.
  • Made specifically with high gas volume end users in mind, the 18 pack is designed to utilize size “T” 300 CU.FT. cylinders.
  • Pallet and Hood is professionally powder coated to protect from wear, corrosion, impact, and weather.
  • Every Weldcoa manifold assembly is 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested and 100% oxygen cleaned, dried, bagged to meet CGA 4.1 requirements.
  • Standard product color is Black. Different color options available upon request.

BENEFITS

Sturdy Exterior Frame
18 cylinder cluster greatly reduces cylinder handling.

Cost Saving Alternative to Micro Bulk Delivery

Installs Quickly Without Tools

Fork Lift Accessible

Integrates With Weldcoa Filling and Transportation Systems
The Sur-LocTM Pallet can be positioned into an accommodating island for efficient filling, and safely locked onto a Weldcoa truck or trailer for transporting.

REQUEST A QUOTE

pallet OPTIONS

IPSL3R-BTNS-2

Weldcoa 3-Rail Sur-Loc Pallet. Supplied with (2) Binder Straps and Brackets. Professionally Powder-Coated with Black Textured Non-Skid Paint.

ITAG3R-BTNS

Weldcoa 3-Rail Link-Loc Pallet Only. Does not include Binder Straps and Bracket. These will need to be supplied by customer. Pallet is Professionally Powder-Coated with Black Textured Non-Skid Paint

ITAG3R-BTNS-2

Weldcoa 3-Rail Link-Loc Pallet. Supplied with (2) Binder Straps and Brackets. Professionally Powder-Coated with Black Textured Non-Skid Paint.

18 cylinder pallet bracket and hood

PMBKT-18BK

Steel formed hood. Professionally Powder-Coated Black. Bracket included.

manifold options

PM18B-SSBPB580

18 Cylinder Brass Header, Rigid Stainless Steel Leads, CGA 580, with Standard Valve.

PM18B-FDBPB540

18 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 540, with Standard Valve.

PM18B-FDBPB580

18 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 580, with Standard Valve.



MANY manifold options





LW06B-CPBR-B580 Solidworks Drawing



See More Manifold Options Available

phone-callHave a special application?

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at sales@weldcoa.com.
