AUTOMATED BAKE OUT OVEN

Efficiently Removes Moisture and Any Trace Contaminants



CAN PURGE PRESSURES UP TO 200 PSI

Drastically Reducing Time Required in the Cylinder Prep Process



HIGH QUALITY

Each Unit is Shipped Assembled, Oxygen Cleaned and Pressure Tested



  • Bake Out Oven 1
  • Bake Out Oven 2
  • Bake Out Oven 3
  • Bake Out Oven 4



INTERESTED IN GETTING A QUOTE



Types available

  • We offer a standard automated 12-cylinder unit designed specifically for non-flammable gases, available in either 240 Volt or 480 Volt. Other voltage options are available upon special request.
  • A vacuum pump is not included with standard unit but is available, with or without a stand.
  • We also offer the options of providing up to three purge gases. This allows the customer to pump argon, helium, and nitrogen to the oven and use the same purge gas that the cylinder will be put into service.



Automated Bake Out Oven

For Industrial and Specialty Gas Applications

The Automated Bake Out Oven provides an efficient means to prepping cylinders for industrial, medical and specialty gas mixtures and/or pure gas grades of 99.999% purity levels or better by removing moisture and any trace contaminants from cylinders being put into service. The system uses a cycle of heat, vacuum and purge gas to remove the contaminants.

PLC CONTROLLED WITH SAFETY IN MIND

A custom PLC monitors the vacuum pressure, cylinder wall temperature, oven temperature, and purge pressure. The unit also provides multiple safety parameters and alarms for situations such as if the vacuum is taking too long, overheating, no purge gas is available, etc. If a vacuum pump is also ordered, a custom vacuum pump motor starter and thermal over load are included to simplify connecting the vacuum pump of your choice.

Features and Benefits

  • Can have purge pressures up to 200 PSI, drastically improving the efficiency and reducing the time required in the cylinder preparation process

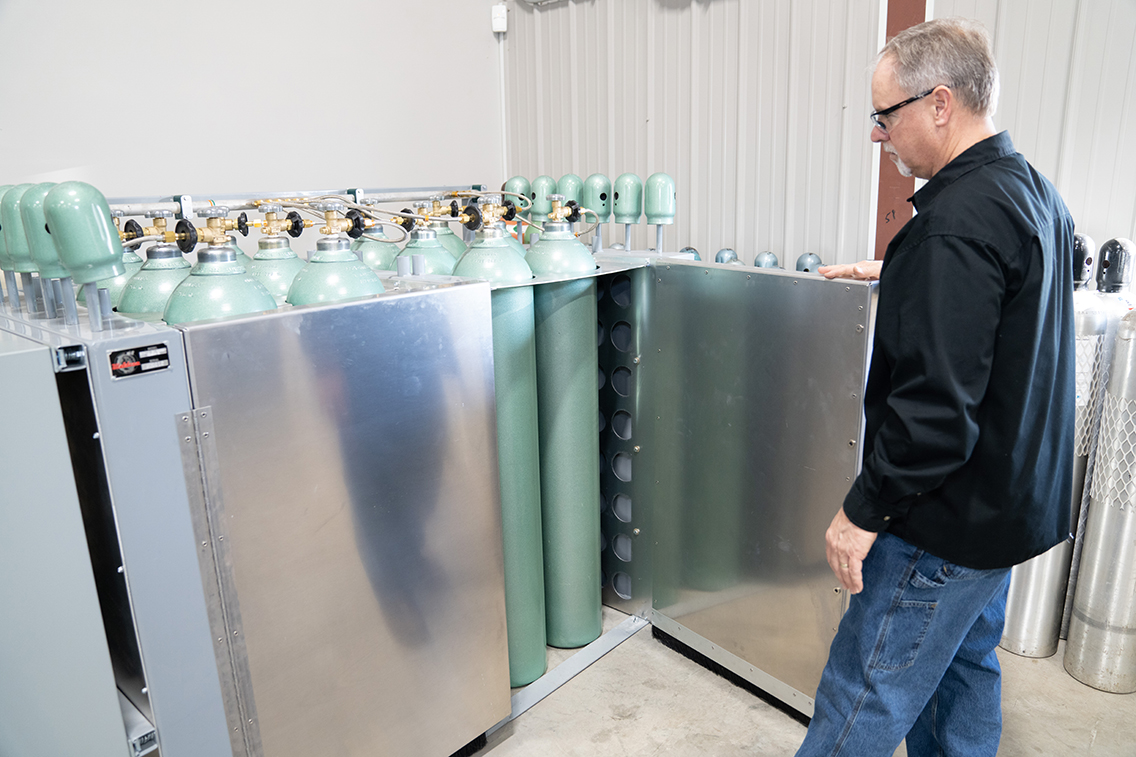

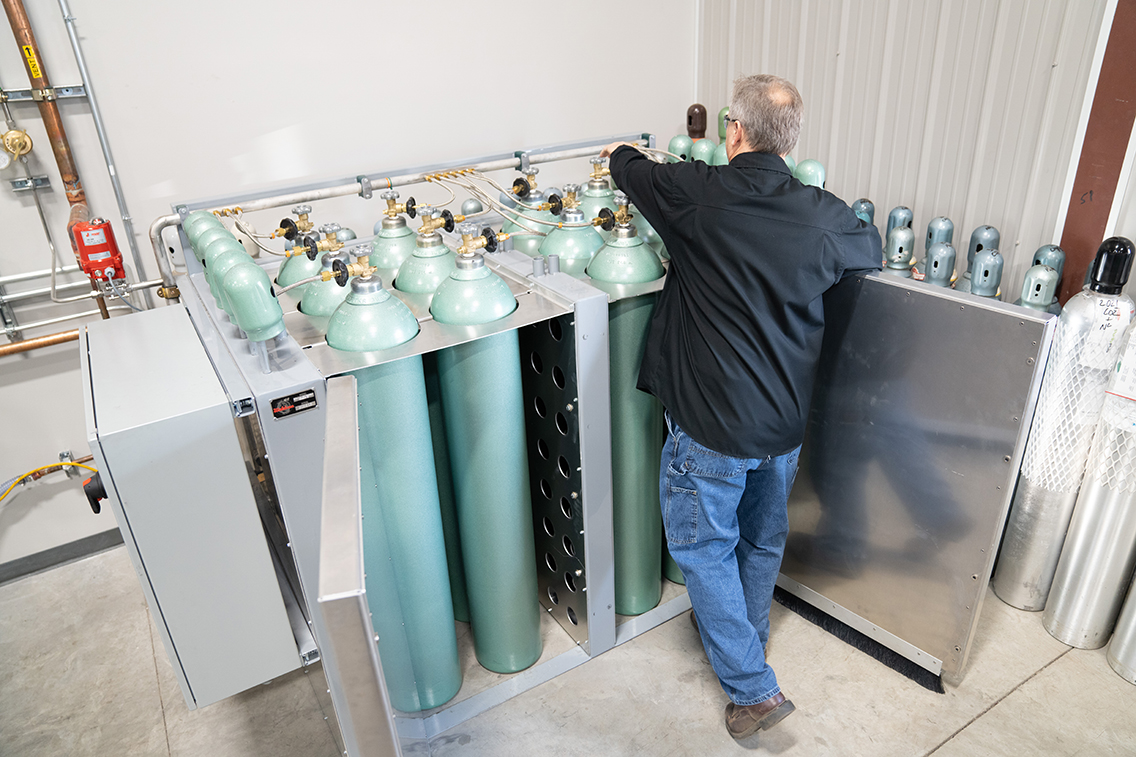

  • Convenient double door design provides quick and easy access for loading and unloading cylinders with no ramps to roll cylinders up or down on

  • Designed with a 1" stainless steel pipe header, all welded, eliminating the potential for leak points

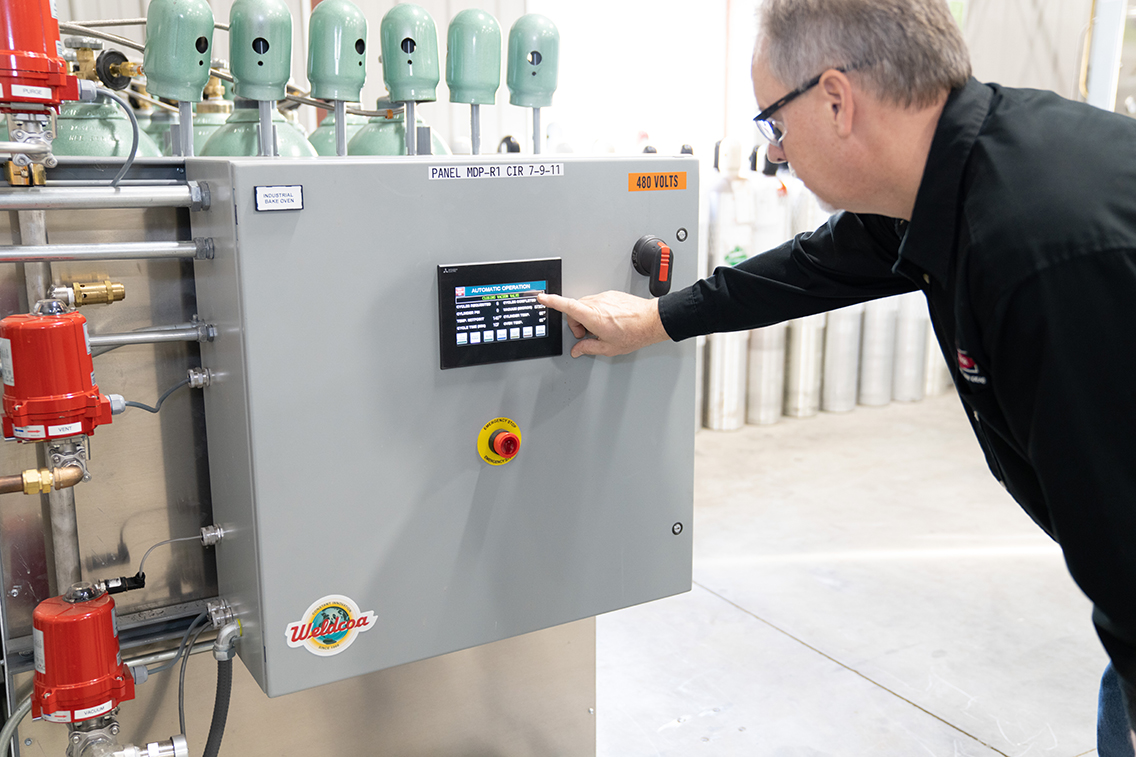

  • Provided with an operator touchscreen interface with PLC for full automatic  control of the enitre bake out process
  • Durable, powder-coated frame

  • Automatic valves are provided for vacuum pump isolation, purge gas and vent operations

  • Provided with Weldcoa made flexbile post-sintered Teflon lined leads
  • The entire manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards

  • System is delivered assembled, oxygen cleaned, pressure tested and ready to go. Simply uncrate the unit, position it in place, anchor it to the floor and connected it to the existing plumbing.

  • Made in the USA
