DESIGN PROVIDES FLEXIBILITY

Configurations can expand and change with your business requirements

DETAILS THAT MAKE A DIFFERENCE

High Quality Product, Proudly Made in the USA

EASY TO USE AND QUICK TO INSTALL

Delivered tested, cleaned and assembled - ready to go

Request a Quote

Available Options

Single Gas Control Panels:

  • Simplex (One- Sided)
  • Duplex (Two-Sided)

Mix Gas Control Panels:

  • Simplex (One-Sided)
  • Duplex (Two-Sided)

 Fill Rack, Manifold and Leads Options:

  • Single Sided or Double Sided Styles Available
  • A Wide, Wide Variety of Cylinder Qty. Per Manifold and Frame Options Available
  • Various Pressure Ratings Available Dependent Upon Manifold Material of Construction
  • Individual Isolation Valves Are Standard Per Drop
  • A Wide Variety of CGA Connections and Leads Available

Fixed Linear Fill Systems and Control Panels

Fixed Linear Manifold Fill Systems and Control Panels are designed for rapid, minimal cost, installation into new or existing facilities. Our process has been developed over the last 50 years and continues to be refined. Building the equipment in the controlled environment of the Weldcoa plant prior to delivery reduces labor, engineering and overall costs dramatically. The modular design provides a flexible, seemingly endless combination of fill manifold configurations that can expand and change with your business requirements.

Available Control Panel Options

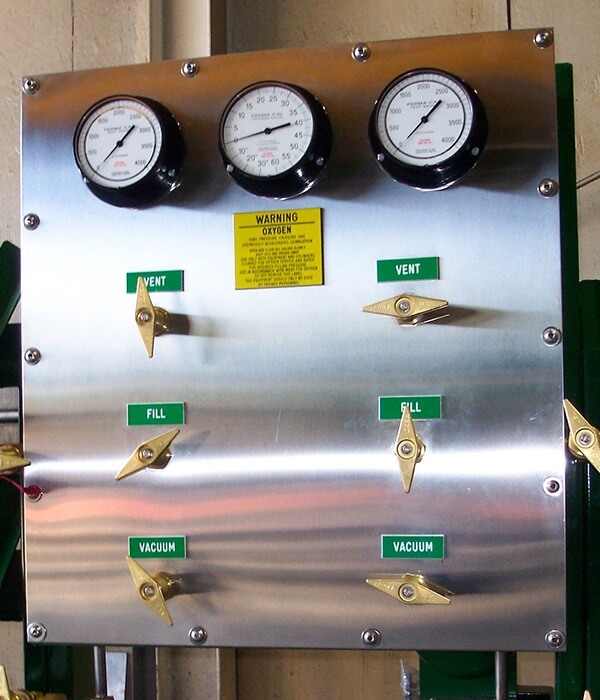

This is the area the operator  will operate the valves and read the gauges. Typically a control panel is integrated on a steel powder-coated frame however the control panel can be sold without a frame if requested. All control panels are made and engineered at Weldcoa.

  • Single Gas; Simplex (One-Sided) or Duplex (Two-Sided)

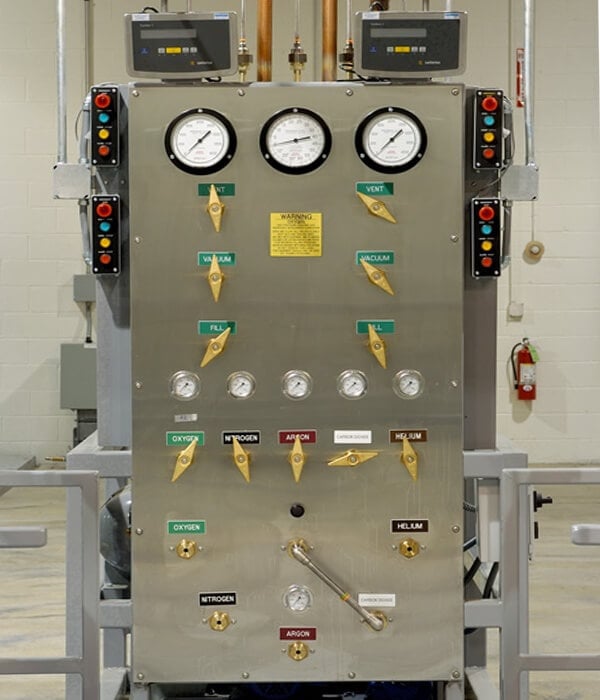

  • Mix Gas; Simplex (One-Sided) or Duplex (Two-Sided)
  • The entire manifold assembly is 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards.
  • Made in the USA

 Fill Rack, Manifold and Lead Options

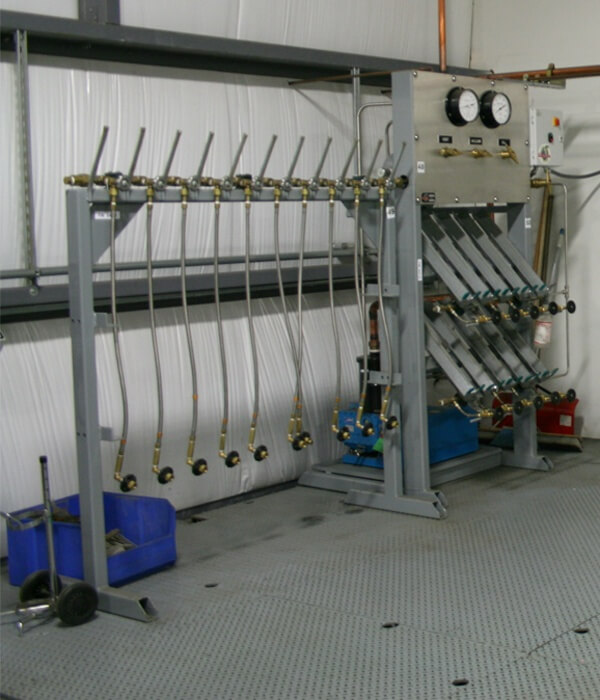

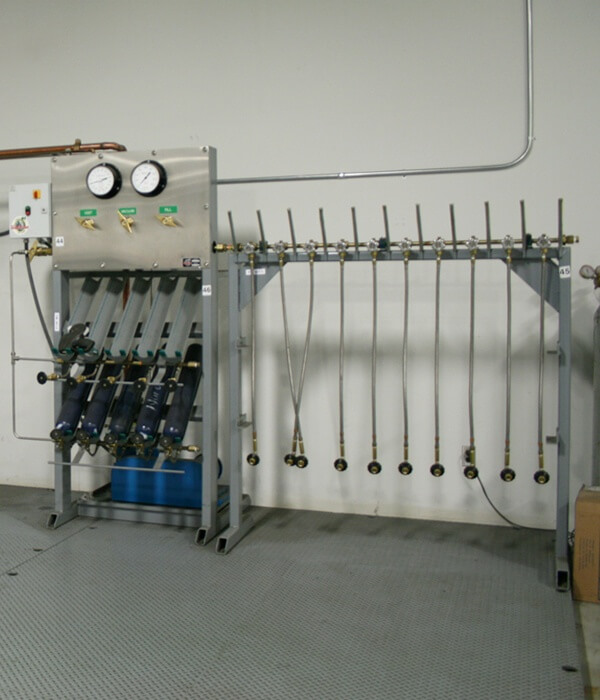

There are multiple variations of fill racks available depending on if they are against the wall, or located in an open area in a fill plant. The fill racks can be single sided or double sided to fit your specific needs. All fill racks are made and engineered at Weldcoa.

  • Single Sided or Double Sided Styles Available
  • A Wide, Wide Variety of Cylinder Qty. Per Manifold and Frame Options Available
  • Various Pressure Ratings Available Dependent Upon Manifold Material of Construction
  • Individual Isolation Valves Are Standard Per Drop

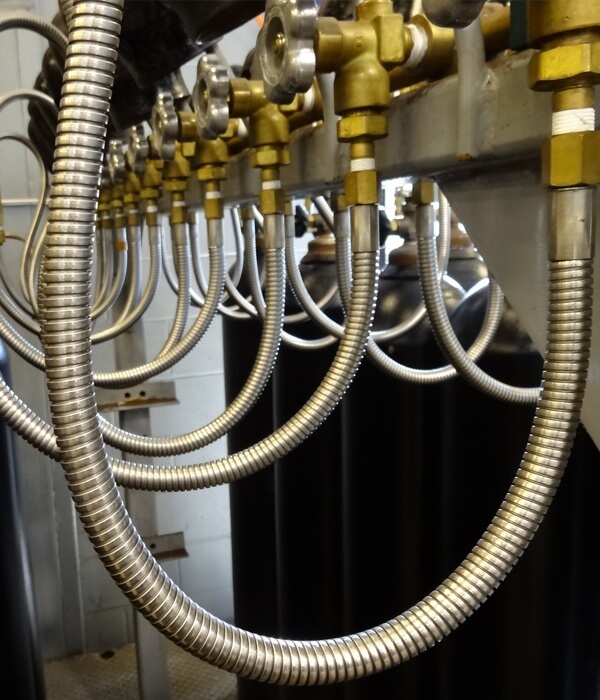

  • A Wide Variety of CGA Connections and Leads Available
  • The entire manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards.
  • Made in the USA

Additional Accessories Available

  • Bank Filling Options, including rack, manifold, and lead/pigtails options

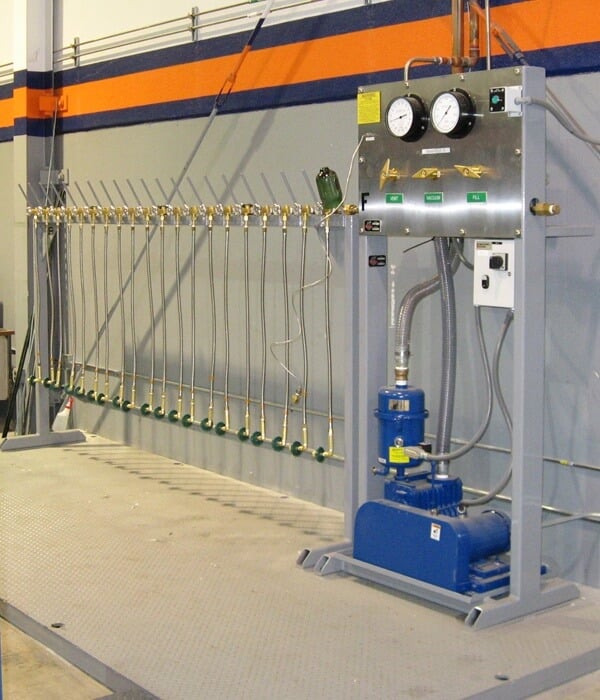

  • Vacuum Pump and Interconnected Piping
  • Fold Down Shelf Units for Small Cylinders
  • Remote Fill Racks Stationed Away From the Control Panel

What to expect from Weldcoa

All Weldcoa Fixed Linear Manifold Fill Systems and Control Panels are fully built 100% at Weldcoa. If a manifold assembly is included, they are tested, oxygen cleaned, bagged and tagged. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com
