STRONGEST, MOST DEPENDABLE TOMBSTONE STYLE PALLETS IN THE INDUSTRY

manufactured at Weldcoa’s USA facility by robotic welders to ensure precision

Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

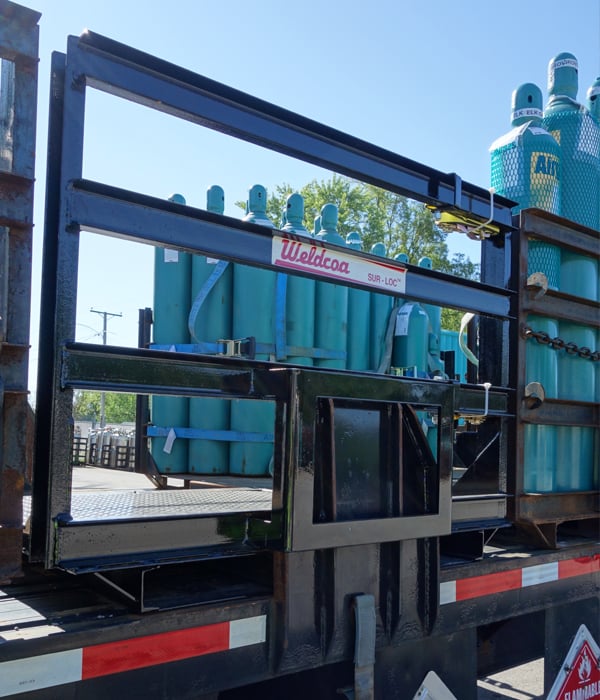

  • Link-Loc-3Rail-On Truck_600x700sliderimage
    Tombstone style pallet slides onto the truck body stake for easy loading and unloading

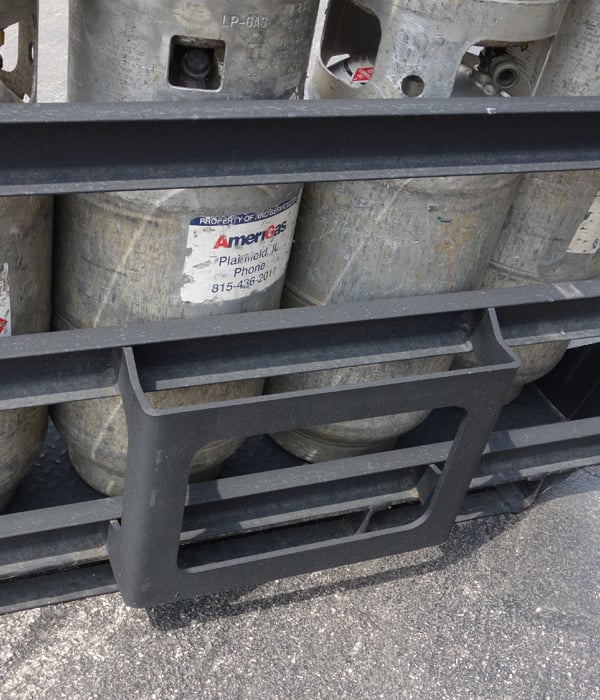

  • Link-Loc-4Rail-bracket-closeup_600x700sliderimage
    BRACKET IS ONE SOLID PIECE OF LASERED AND FORMED STEEL PLATE FOR ADDED DURABILITY
  • Link-Loc-3Rail-3Dviewdeckside_600x700sliderimage

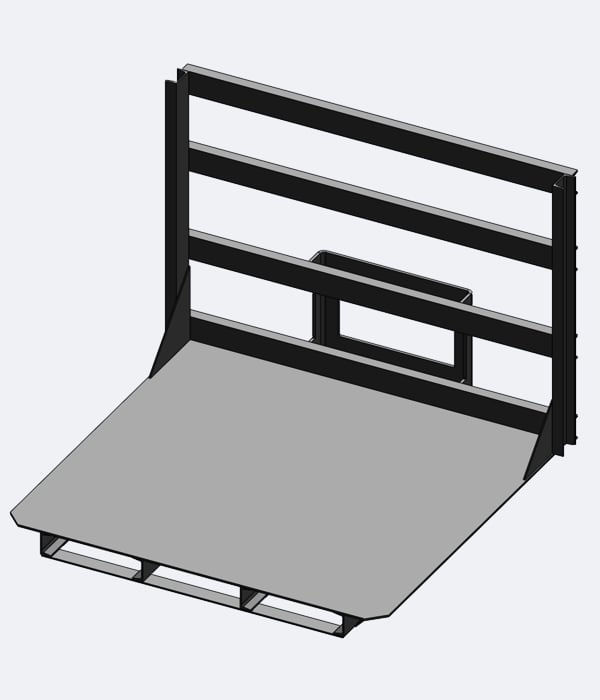

    LINK-Loc™ 3 Rail Pallet with No Side Rails.

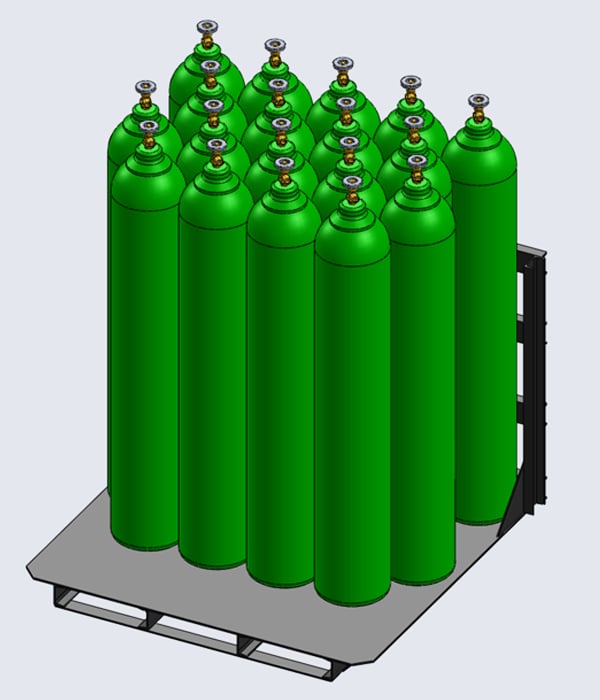

  • Link-Loc-3Rail-18CylindersLoaded_600x700sliderimage
    LINK-LOC™ 3-RAIL PALLET'S Typical Capacity IS (18) 9.5” diameters cylinders

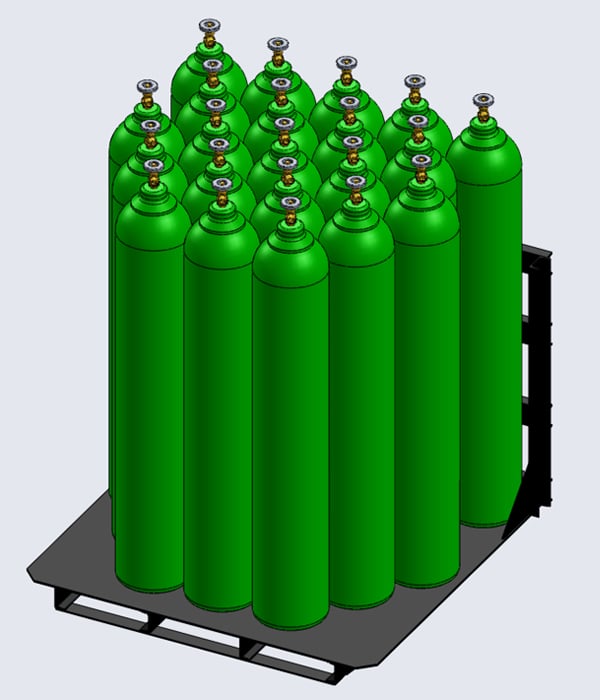

  • Link-Loc-3Rail-21CylindersLoaded_600x700sliderimage
    LINK-LOC™ 3-RAIL PALLET'S MAXIMUM Capacity IS (21) 9.5” diameters cylinders OR (26) 7" DIAMETER CYLINDERS
  • Marine-Paint

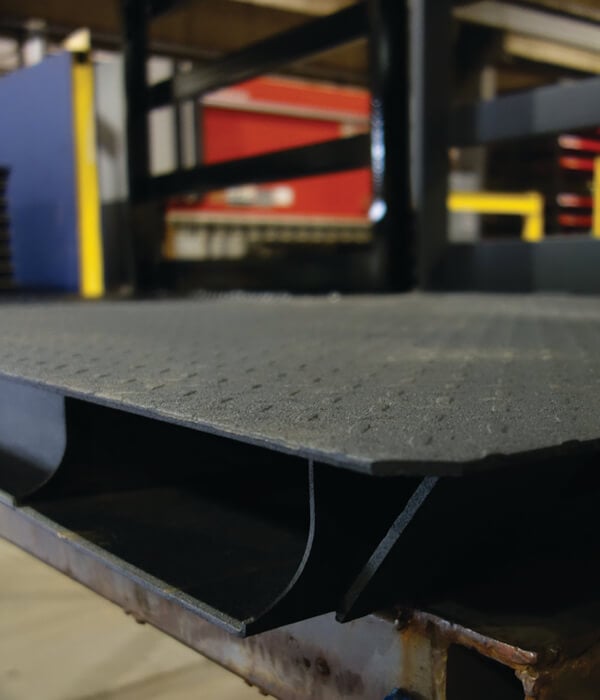

    Entire pallet is professionally powder-coated with black, textured, non-skid paint for added safety and to also protect from wear, corrosion, impact, and weather
  • Link-Loc-4Rail-90degree_600x700sliderimage

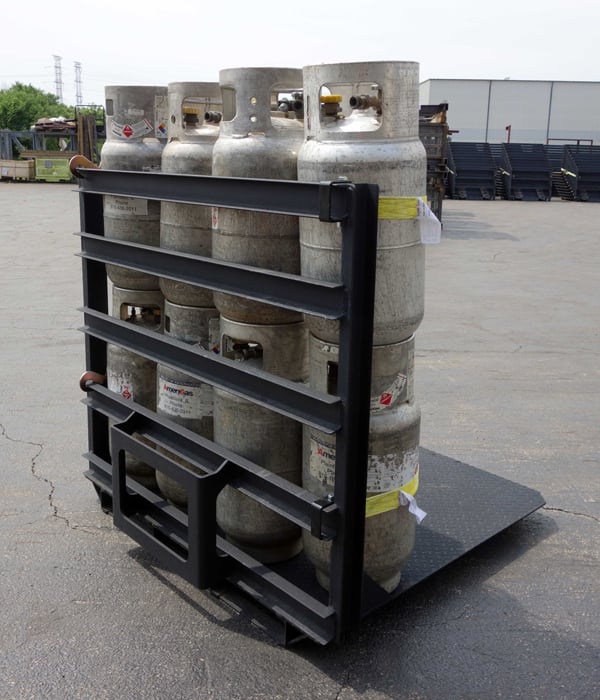

    NEW LINK-LOC™ 4-rail pallet design

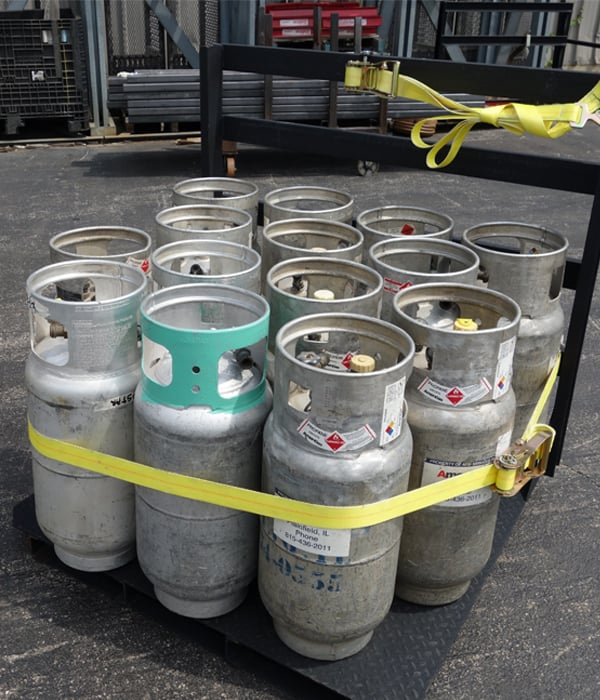

  • Link-Loc-4Rail-14propaneloaded_600x700sliderimage
    14 cylinders per level can now be stacked for a total of 28 cylinders!
  • Link-Loc-undersideview_600x700sliderimage

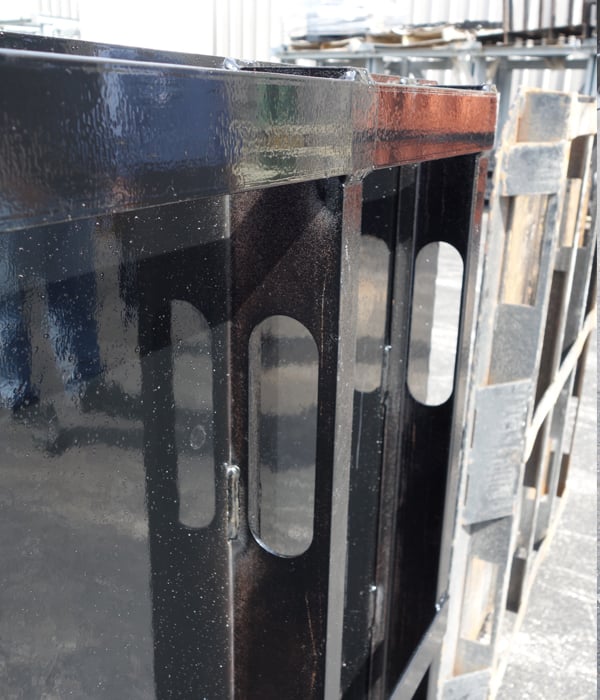

    The fork pockets are re-enforced and have an custom shaped design specifically to reduce high stress points in the base.

REQUEST A QUOTE


LinK-loc™ pallets with textured NON-SKID paint


ITAG3r-BTns

Link-Loc™ Pallet - 3 Rail, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

ITAG3r-Btns-CP

Link-Loc™ Pallet - 3 Rail with Strap Bracket Welded on Uprights (Bracket is for Cotter Pin Style Straps), Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

ITAG4r-BTns

Link-Loc™ Pallet - 4 Rail, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

ITAG4r-Btns-CP

Link-Loc™ Pallet - 4 Rail with Strap Bracket Welded on Uprights (Bracket is for Cotter Pin Style Straps), Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

LINK-LOC™ PALLETS

Weldcoa has been manufacturing high quality cylinder pallets for over 50 years. We have now added the "tombstone" style pallet design to our product offering with both 3-rail and 4-rail options. All Link-Loc™ pallets are laser cut, formed, robotically welded and manufactured at Weldcoa's facility in Aurora, IL. Consistent, precision welded, long lasting results are what you should expect with this new cylinder pallet offering.

Time to double stack

New 4-Rail Design Creates a Secure, Safer Bind and Reduces Loading Time

No longer deal with the restriction on double stacking by utilizing a pallet that incorporates a moving shelf. By using this new 4-Rail Pallet design, 14 cylinders per level can now be stacked for a total of (28) cylinders in a 4/3/4/3 bind utilizing two strap and bracket assemblies on the C-channel rails. This creates a safer, tighter bind and reduces loading time of the pallet along with eliminating the possible pinch points associated to the operation of the shelf by the loaders and handlers.

Features and Benefits

  • Designed to transport high pressure cylinders
  • All Link-Loc™ pallet options have 4-way forklift entry
  • The tombstone bracket is one solid piece of layered and formed steel plate for added durability and longevity
  • The corners of the diamond plate deck have been blunted for improved safety
  • The fork pockets are re-enforced and have an oval shaped design specifically to reduce high stress points in the base.
  • The pallet base is structurally sound
  • Entire pallet is professionally powder-coated with black, textured, non-skid paint for added safety and to also protect from wear, corrosion, impact, and weather
  • 100% Made in the USA

3-RAIL PALLET specifications
  • Typical Capacity (18) 9.5" diameter cylinders. (18 cylinders are recommended in order to have a center aisle on the truck body or trailer)
  • Maximum Capacity (21) 9.5" diameter cylinders or (26) 7" diameter cylinders
  • The deck (floor) is 48" wide x 44-5/8" deep
  • The pallet deck to ground height is 3-7/16"high
  • The rail height is 38-7/16" high

4-RAIL PALLET specifications

  • Typical Capacity (18) 9.5" diameter cylinders or (28) 33 lbs. propane cylinders
  • Maximum Capacity (21) 9.5" diameter cylinders or (26) 7" diameter cylinders
    or (28) 33 lbs. propane cylinders
  • The deck (floor) is 48" wide x 44-5/8" deep
  • The pallet deck to ground height is 3-7/16"high
  • The rail height is 47-7/16" high

What to expect from Weldcoa

All Weldcoa Pallets are fully built 100% at Weldcoa. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.



Contact Us

img-background

MYWELDCOA_logo FRAMED_black background_no tagline

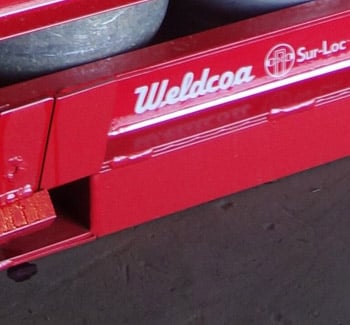

product_sure-loc-pallets
