IN-LINE PIVOT DESIGN

Designed with an inline wheelbase, providing high maneuverability and durability

DETAILS THAT MAKE A DIFFERENCE

High Quality Product, Proudly Made in the USA

OVERHEAD CAPABILITIES

Compliant with DOT Guidelines

Request A Quote

POPULAR CART OPTIONS (Manifolds Sold Separately)

LCS06W-AIP

LowPro M1 In-Line Series, 6 Cylinder, A Base, Phenolic In-Line Wheels with an Industrial Brake.

LCS12W-AIP

LowPro M1 In-Line Series, 12 Cylinder, A Base, Phenolic In-Line Wheels with an Industrial Brake.

POPULAR MANIFOLD OPTIONS

LM06B-CPBP-B540

LowPro Series Manifold, 6 Cylinder Brass Header, Rigid Copper Leads, CGA 540, with Standard Valve.

LM06B-CPBP-B580

LowPro Series Manifold, 6 Cylinder Brass Header, Rigid Copper Leads, CGA 580, with Standard Valve.

LM12B-CPBP-B540

LowPro Series Manifold, 12 Cylinder Brass Header, Rigid Copper Leads, CGA 540, with Standard Valve.

LM12B-CPBP-B580

LowPro Series Manifold, 12 Cylinder Brass Header, Rigid Copper Leads, CGA 580, with Standard Valve.



Manifold Options Available

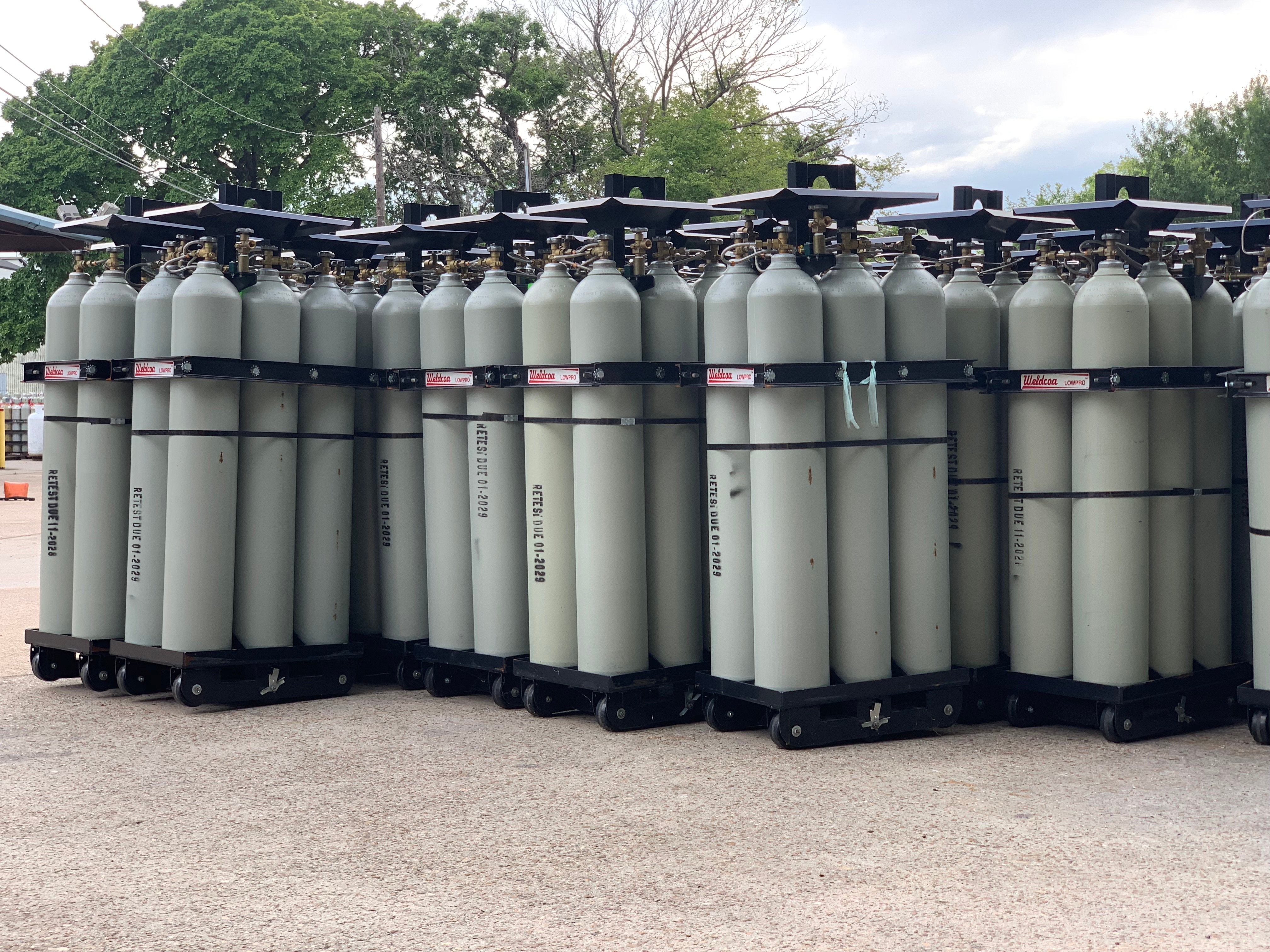

LowPro M1 In-Line Series

Designed with an inline wheelbase, providing high maneuverability and safety precautions similar to the pivoting lumber carts you see at a hardware store. Added traction, weight distribution, low center of gravity and durability are also benefits gained from the inline pivot design. Compliant with DOT guidelines.


Features and Benefits

  • Standard cart design includes a preformed, lasered “A” size base accommodating 8.75” to 9.5” OD cylinders. “B”, “C” and “D” size bases are available upon request for larger OD cylinder needs.
  • Additional options such as D-Rings, Roll Bar, Baffles, Secondary Clamp and Steering Handles are also available upon request.
  • Entire cart frame is professionally powder coated to protect from wear, corrosion, impact, and weather.
  • Galvanizing is an available option for high corrosive environments.

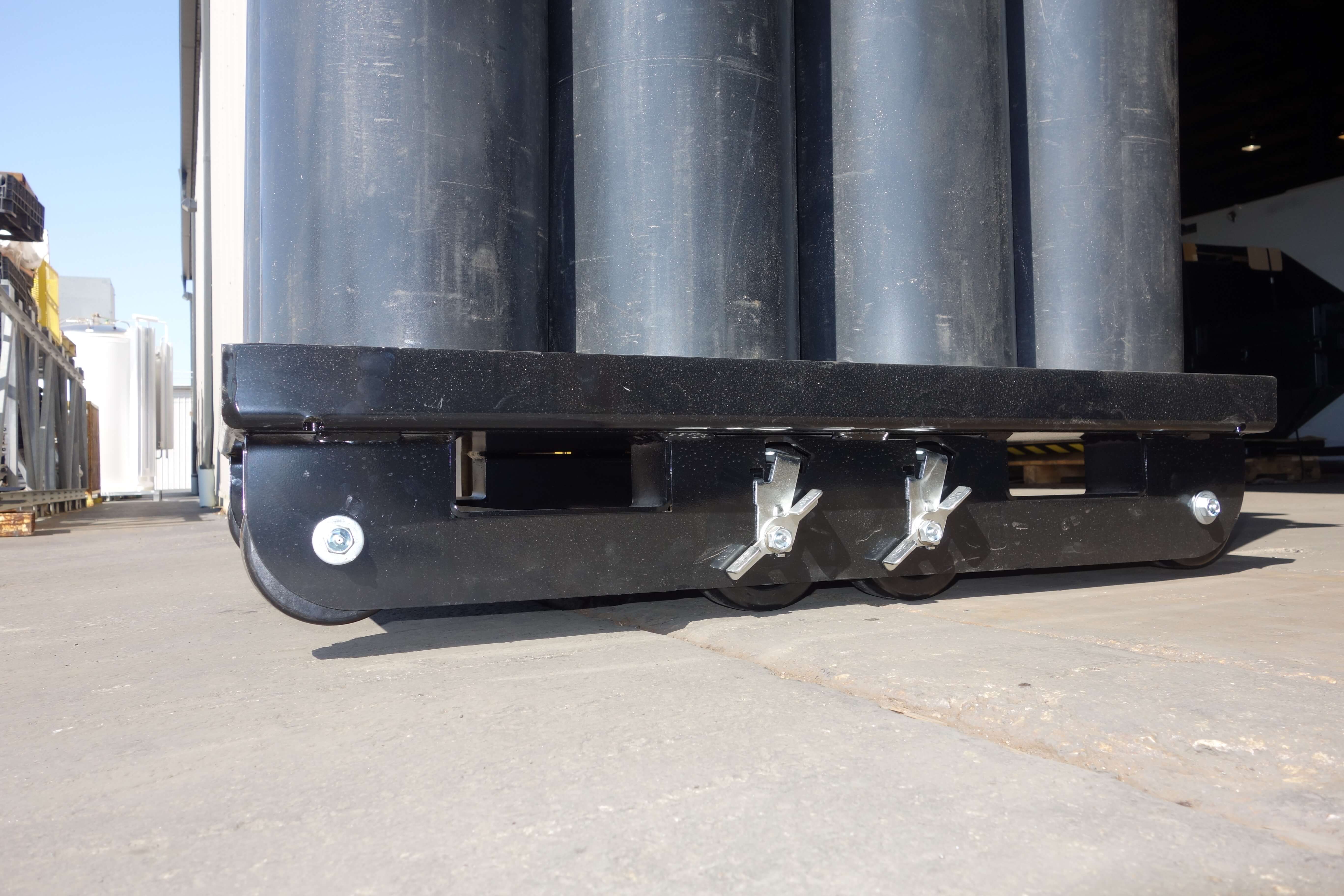

  • The outside wheels are higher than the center wheel, allowing the cart to easily be maneuvered and pivoted in multiple directions and also can go over unevened surfaces or cracks in the ground with ease.

  • Durable, industrial ball bearings allow the wheels to rotate freely and smoothly.

  • The lasered cut and press brake formed hood on the top of the gas pack provides overhead protection to the cylinders, leads, valves and manifolds from either a crane or a forklift during transit.

  • A crane lifting eye is incorporated into the upright structural tubing

  • 4-Way forklift accessible from the bottom

  • Sturdy exterior frame with cylinder clamp design made specifically to reduce potential cylinder rotation, stress and/or vibration inflicted onto the leads attached to the cylinders in the carts during transit.
  • Adjustable manifold bracket can be positioned up or down accommodating different cylinder heights and has also been redesigned to universally accommodate most Weldcoa manifolds including Block, Brass, Stainless Steel and Monel 400 models with Rigid or Flexible Leads.

  • Available with or without a manifold assembly
  • The entire manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards.
  • Compliant with DOT Guidelines
  • Made in the USA

What to expect from Weldcoa

All Weldcoa Gas Packs are fully built 100% at Weldcoa. If a manifold assembly is included, they are tested, oxygen cleaned, bagged and tagged. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.
