GET IT WHERE YOU NEED IT

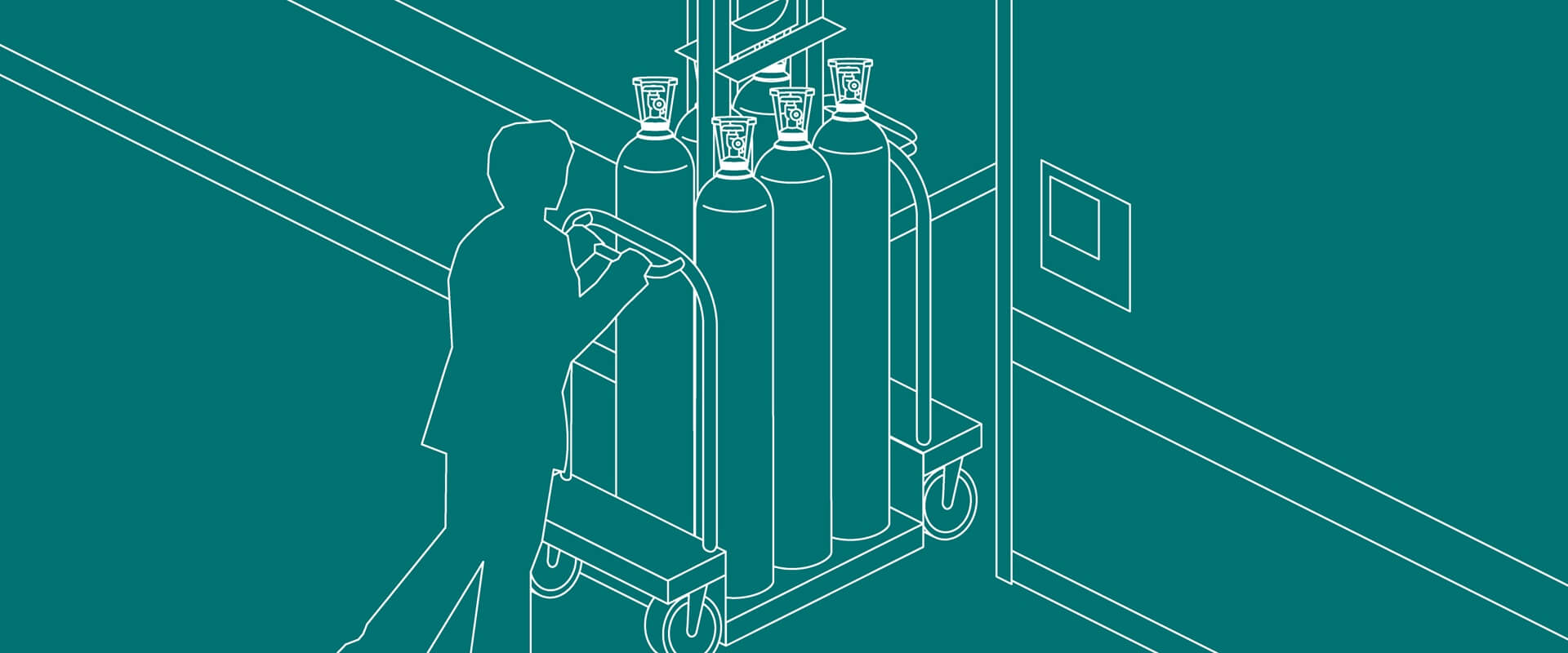

Designed to travel through doorways and standard size elevators

Ideal for FEMA Transport

Easy to load, unload and transport cylinders of compressed gases

MADE IN THE USA

Compliant with DOT Guidelines

Request A Quote

 CART OPTIONS

LTCA06-APB-JG

LowPro FEMA Transport Model, 6 Cylinder, A Base, Phenolic Wheels with an Industrial Brake. This is designed strictly for FEMA transport. This cart done not come, nor compatible, with a manifold. Color: Green.

LCA06W-APB

LowPro Side Loading Model, 6 Cylinder, A Base, Phenolic Wheels. This is designed for manifolding cylinders together. Manifold options are listed below. Color: Black.

POPULAR MANIFOLD OPTIONS

LM06B-CPBP-B540

LowPro Series Manifold, 6 Cylinder Brass Header, Rigid Copper Leads, CGA 540, with Standard Valve.

LM06B-CPBP-B580

LowPro Series Manifold, 6 Cylinder Brass Header, Rigid Copper Leads, CGA 580, with Standard Valve.

LM06B-FDBP-B540

LowPro Series Manifold, 6 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 540, with Standard Valve.

LM06B-FDBP-B580

LowPro Series Manifold, 6 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 580, with Standard Valve.



Manifold Options Available

LowPro Side Loading Options

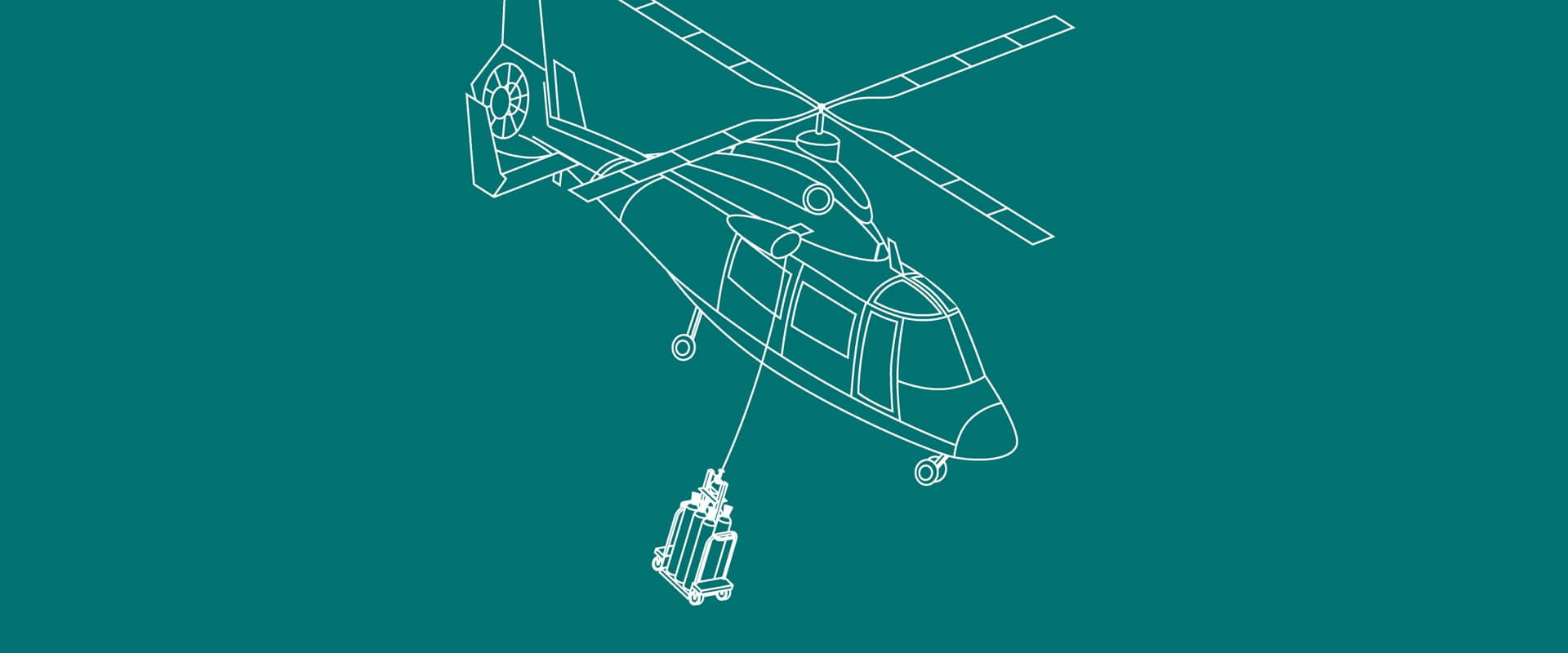

Easy to load, unload and transport manifolded cylinders of compressed gases. Designed to travel through doorways and standard size elevators. Can be pushed by hand or lifted with a crane or fork truck. Cart is available with manifold bracket (for manifolding cylinders together) or without a manifold (strictly for FEMA transport). Compliant with DOT guidelines.




EASY TO LOAD AND UNLOAD

  • Standard cart design includes a preformed, lasered “A” size base accommodating 8.75” to 9.5” OD cylinders.
  • 1.5" ground clearance with a ramp on each side makes unloading and loading quick and easy
  • Additional options such as Brakes and Steering Handles are also available upon request.
  • Entire cart frame is professionally powder coated to protect from wear, corrosion, impact, and weather.
  • Galvanizing is an available option for high corrosive environments.

  • Compliant with DOT Guidelines

Features and Benefits

  • Comes standard with four phenolic wheels (two fixed and two rotating), allowing the cart to easily be maneuvered and pivoted in multiple directions with ease.

  • Designed to travel through doorways and standard size elevators
  • Comes with Steering Handles for easy maneuvering
  • Side braces allow unit to be bound flat to a side of a stake body truck
  • Two sets of 2" wide ratchet handle binder straps are provided

  • A crane lifting eye is incorporated into the upright structural tubing

  • Adjustable manifold bracket can be positioned up or down accommodating different cylinder heights and has also been redesigned to universally accommodate most Weldcoa manifolds including Block, Brass, Stainless Steel and Monel 400 models with Rigid or Flexible Leads.

  • Available with or without a manifold assembly
  • The entire manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards.
  • Made in the USA

What to expect from Weldcoa

All Weldcoa Gas Packs are fully built 100% at Weldcoa. If a manifold assembly is included, they are tested, oxygen cleaned, bagged and tagged. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.
