GAME CHANGING 2-IN-1 DESIGN

Wheels when you need them, Stand Pads when you don't

DETAILS THAT MAKE A DIFFERENCE

High Quality Product, Proudly Made in the USA

WHEELS WHEN YOU NEED THEM

Stand Pads when you don't

Request A Quote

POPULAR CART OPTIONS (Manifolds Sold Separately)

LCW06-AIP

Wolf Pack 2-in-1 Series, 6 Cylinder, A Base, Phenolic In-Line Wheels (with Industrial Brake System) and Drop Down Stand Pads.

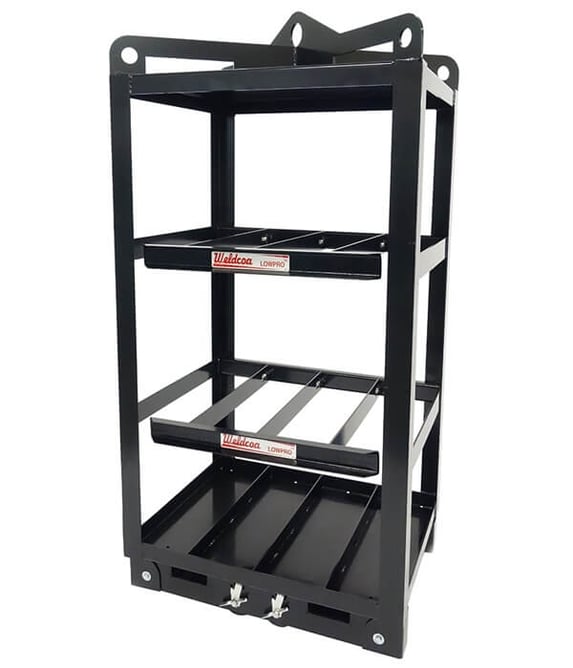

LCW12-AIP

Wolf Pack 2-in-1 Series, 12 Cylinder, A Base, Phenolic In-Line Wheels (with Industrial Brake System) and Drop Down Stand Pads.

POPULAR MANIFOLD OPTIONS

LW06B-FDBP-B540

Wolf Pack Manifold, 6 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 540, with Standard Valve.

LW06B-FDBP-B580

Wolf Pack Manifold, 6 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 580, with Standard Valve.

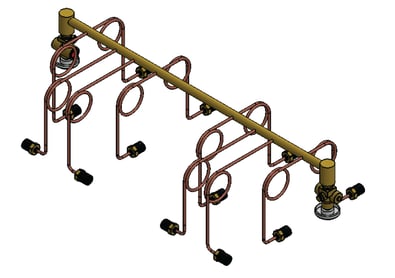

LW12B-FDBP-B540

Wolf Pack Manifold, 12 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 540, with Standard Valve.

LW12B-FDBP-B580

Wolf Pack Manifold, 12 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 580, with Standard Valve.



Manifold Options Available

Wolf Pack 2-IN-1 Series

Designed to be utilized as a dual asset - quickly changing from a gas pack with wheels to a stand pad skid unit within seconds, no tools needed. The inline wheelbase provides a low center of gravity and durability as well as benefits gained from the easily maneuverable pivot design. Sturdy exterior frame comes with double clamps making this gas pack a long lasting investment. Compliant with DOT guidelines and Shell Off-Shore Specification OPS0055 Lifting and Hoisting Standards.





Features and Benefits

  • The outside wheels are higher than the center wheel, allowing the cart to easily be maneuvered and pivoted in multiple directions and also can go over unevened surfaces or cracks in the ground with ease.

  • The Wolf Pack is specifically designed to utilize size “T” 300 CU.FT. cylinders. An extension kit is an available option for size “K” 200 CU. FT. cylinders.

  • Standard cart design includes a preformed, lasered “A” size base accommodating 8.75” to 9.5” OD cylinders.

  • Entire cart frame is professionally powder coated to protect from wear, corrosion, impact, and weather.

  • Galvanizing is an available option for high corrosive environments.

  • Durable, industrial ball bearings allow the wheels to rotate freely and smoothly.

  • 8-Way forklift accessible. Can also be moved by crane.

  • The lasered cut and press brake formed hood on the top of the gas pack provides overhead protection to the cylinders, leads, valves and manifolds from either a crane or a forklift during transit.

  • 4-Point crane lifting eyes, with an additional single point lifting eye,  are incorporated into the frame

  • 4-Way forklift accessible from the bottom

  •  Sturdy exterior frame with double cylinder clamp design made specifically to reduce potential cylinder rotation, stress and/or vibration inflicted onto the leads attached to the cylinders in the carts during transit.

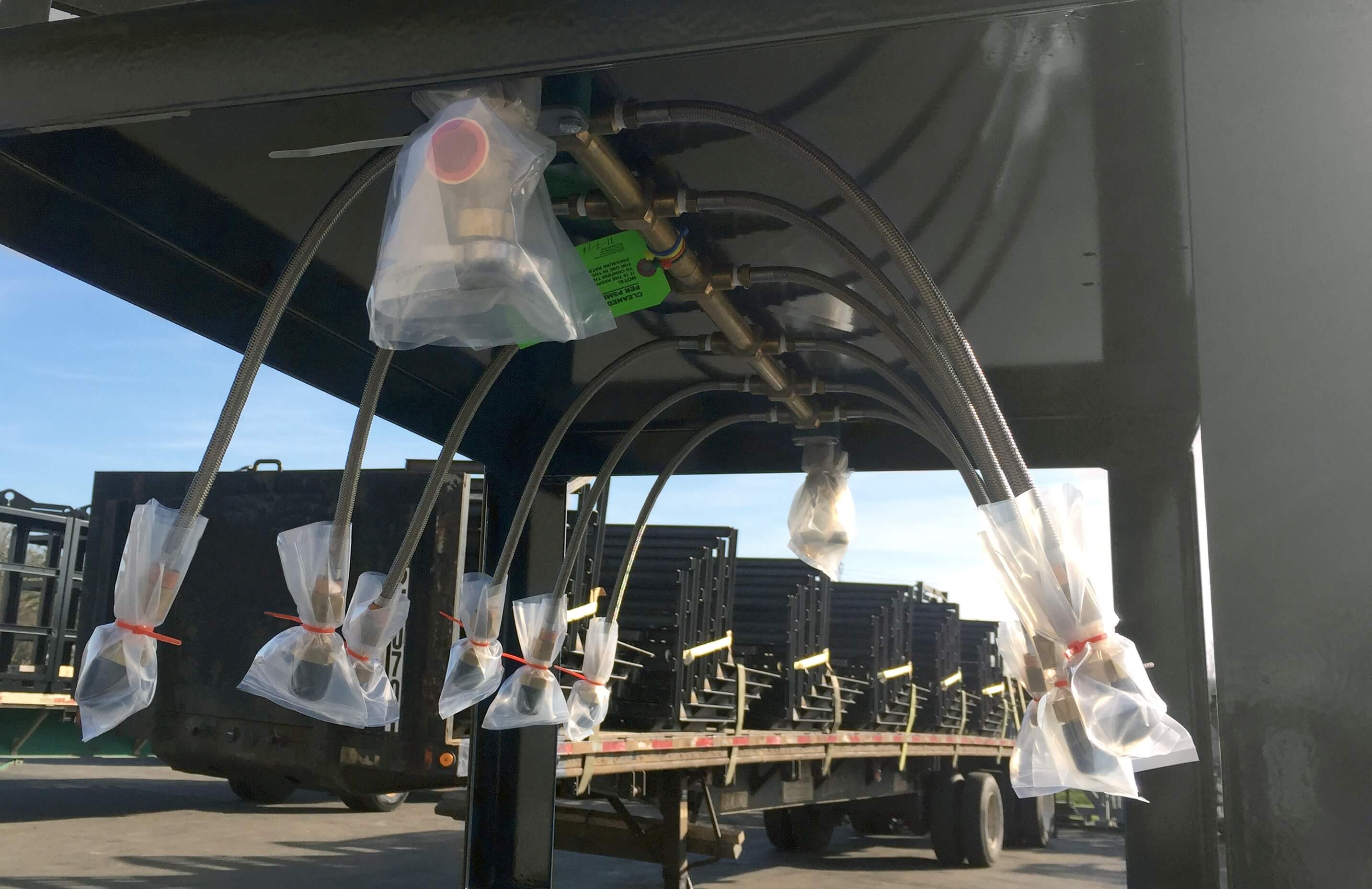

  • Available with or without a manifold assembly
  • The entire manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards.
  • Compliant with Shell Specification OPS0055 Lifting and Hoisting Standards
  • Compliant with DOT Guidelines
  • Made in the USA

What to expect from Weldcoa

All Weldcoa Gas Packs are fully built 100% at Weldcoa. If a manifold assembly is included, they are tested, oxygen cleaned, bagged and tagged. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.
