• Laser cut and press brake formed base and structure provides a consistent, durable, long lasting product that you can depend on

• 8-Way forklift accessible. Can also be moved by crane.

• The lasered cut and press brake formed hood on the top of the gas pack provides overhead protection to the cylinders, leads, valves and manifolds from either a crane or a forklift during transit.

• 4-Point crane lifting eyes, with an additional single point lifting eye,  are incorporated into the frame

• 4-Way forklift and pallet jackable accessible from the bottom

•  Sturdy exterior frame with double cylinder clamp design made specifically to reduce potential cylinder rotation, stress and/or vibration inflicted onto the leads attached to the cylinders in the carts during transit.
• Available with or without a manifold assembly
• The entire manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards.
• Made in the USA

new design due to customer demand

• No Wheels - Skid Base is both forklift and pallet jackable
• Specifically designed to utilize size “T” 300 CU.FT. cylinders. An extension kit is an available option for size “K” 200 CU. FT. cylinders.
• Standard cart design includes a preformed, lasered “A” size base accommodating 9” to 9.625” OD cylinders.
• Entire cart frame is professionally powder coated to protect from wear, corrosion, impact, and weather.
• Galvanizing is an available option for high corrosive environments.
• Compliant with DOT Guidelines

cart only

lcw06-apj

Wolf Pack Skid Series, 6 Cylinder, A Size Skid Base with No Wheels. Designed to be easily transported with a Pallet Jack, Fork Truck or Crane.
Color: Black

lcw12-apj

Wolf Pack Skid Series, 12 Cylinder, A Size Skid Base with No Wheels. Designed to be easily transported with a Pallet Jack, Fork Truck or Crane.
Color: Black

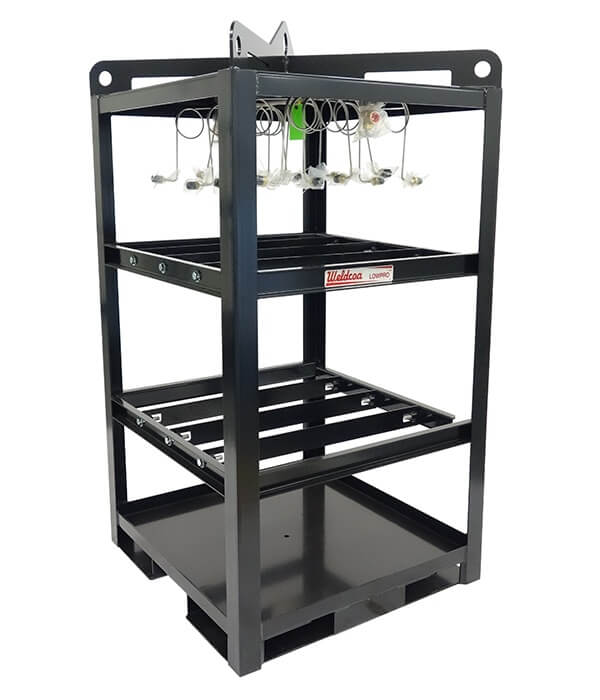

lcw16-apj

Wolf Pack Skid Series, 16 Cylinder, A Size Skid Base with No Wheels. Designed to be easily transported with a Pallet Jack, Fork Truck or Crane.
Color: Black

popular manifold options

NOTE: THe XX should to be replaced with 06, 12 or 16 depending on which style you need

lwXXb-fdbp-b540

Wolf Pack Manifold, 6, 12, or 16 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 540, with Standard Valve.

lwXXb-fdbp-b580

Wolf Pack Manifold, 6, 12, or 16 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 580, with Standard Valve.

lwXXb-fdbp-b590

Wolf Pack Manifold, 6, 12, or 16 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 590, with Standard Valve.

lwXXb-ssbp-b580

Wolf Pack Manifold, 6, 12, or 16 Cylinder Brass Header, Rigid Stainless Steel Leads, CGA 580, with Standard Valve

lwXXb-ssbp-b680

Wolf Pack Manifold, 6, 12, or 16 Cylinder Brass Header, Rigid Stainless Steel Leads, CGA 680, with Standard Valve

Additional Manifold and Lead options are available including options with RPV Valves. Please contact Weldcoa at sales@weldcoa.com for further assistance.
