rigid metal lead Series

Weldcoa proudly designs, manufacturers, assembles, cleans and test a wide variety of manifolds and leads in-house include a wide variety of rigid metal leads for compressed gas applications.

THE POPULAR CHOICE FOR DECADES

Rigid Copper leads have been widely used and recognized as a lead material where minimum flexibility is required. Their low cost and compatibility with high pressure Oxygen gas has made them an economical choice for a number of applications. Copper has no permeability to small gas molecules such as hydrogen and helium. All end connections are attached by silver brazing.

Rigid Stainless Steel leads provide the maximum strength when flexibility is not important. Their low cost compared to flexible hoses has made them an economical choice for a number of applications. Solid metal has no permeability to small gas molecules such as hydrogen and helium. All connections are either silver brazed or TIG welded, depending on the end connection material.

Rigid Monel-400 leads provide the maximum strength when flexibility is not important and high pressure Oxygen is used. Their low cost compared to flexible hoses has made them an economical choice for a number of applications. Solid metal has no permeability to small gas molecules such as hydrogen and helium. All connections are either silver brazed or TIG welded, depending on the end connection material.

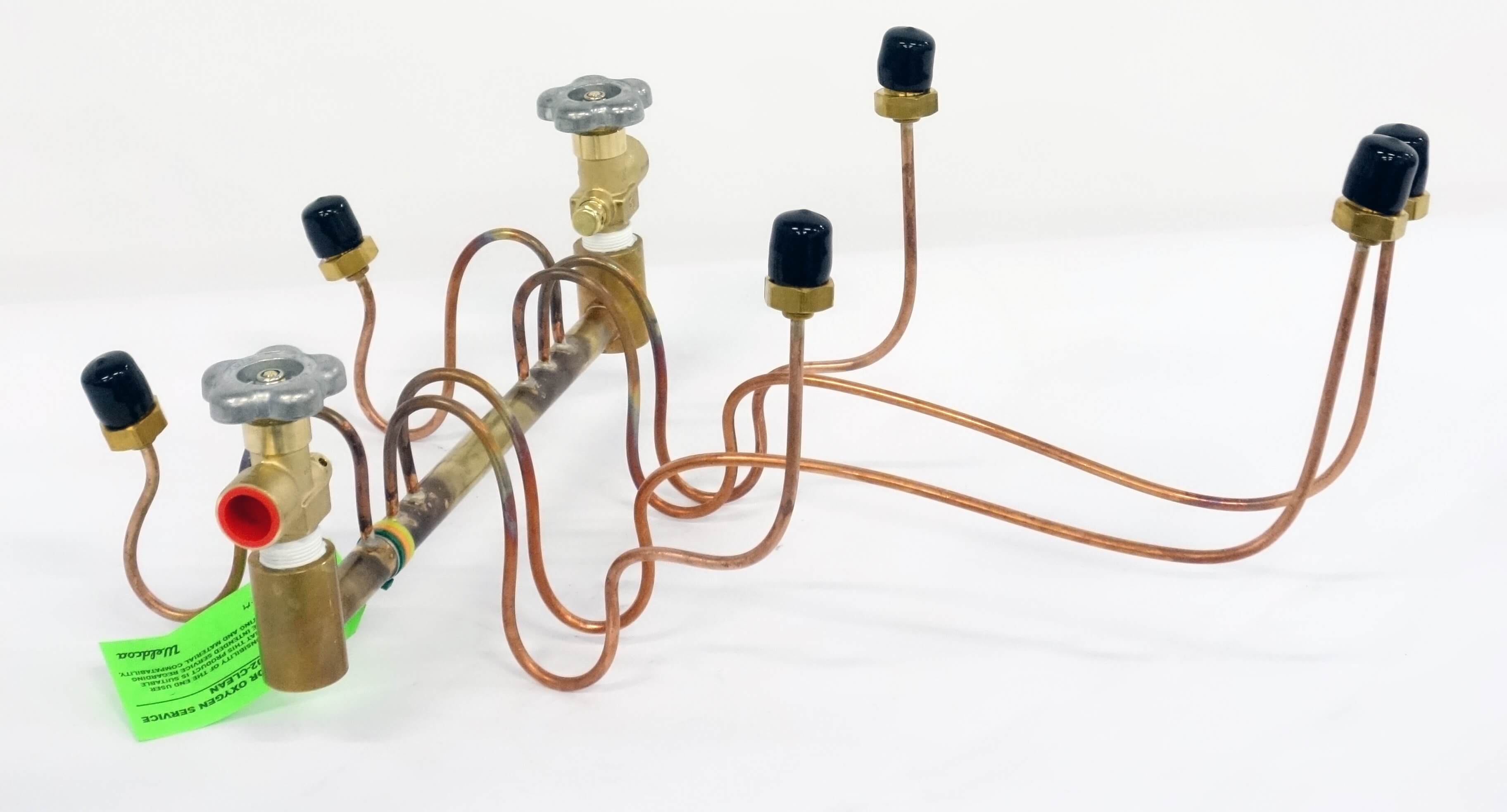

LowPro Manifold with Rigid Leads HERO



SAFETY FEATUREs

Quality control methods and meticulous attention to detail throughout the manufacturing process ensure that our customers will receive a leak-free lead that will provide years of service. This detail and commitment to the entire process helps make Weldcoa's lead products the very best in the industry.

  • Maximum allowable working pressure (MAWP) is based on a 4:1 Safety Factor. Therefore all of our non-metal leads' minimum burst level is Four Times Maximum Allowable Working Pressure
  • Every lead is 100% Hydrostatically pressure tested to 1.5 times the MAWP
  • Then 100% Nitrogen leak tested
  • Then 100% Externally cleaned to remove manufacturing lubricants and debris
  • Then 100% Internally oxygen cleaned, dried, bagged to the highest safety standards including CGA's 4.1 requirements.
  • All Weldcoa Leads are made in the USA

Learn More ABOUT OUR Lead AND HOSE Testing and Cleaning



available options

1/4" RIGID COPPER leads - 3500 psi

Weldcoa’s 1/4" 3500 PSIG Rigid Copper Leads are used in many Industrial and Medical gas charging and discharge applications. A typical application is where cylinders are permanently manifolded together such as with cylinder carts and banks, where the leads are disconnected infrequently. Copper is compatible with the most common Industrial, Medical and Specialty gases including Argon, Oxygen, Nitrogen, Helium, Carbon Dioxide and Hydrogen.

SAFETY CAUTION: Copper is not compatible with Acetylene. Rigid Copper leads must periodically be annealed (heated and slow cooled) to relieve the stresses caused by bending and pressure cycling. Consult your company’s policy on annealing of rigid leads.



REQUEST A QUOTE



1/4" Rigid 316 stainless steel leads - 7500 psi

Weldcoa’s 1/4" 7500 PSIG Rigid 316 Stainless Steel Leads are used in many Industrial and Specialty gas charging and discharge applications. A typical application is where cylinders are permanently manifolded together such as with cylinder carts and banks, where the leads are disconnected infrequently. 316 Stainless Steel is compatible with the most common Industrial and Specialty gases including Argon, Nitrogen, Helium, Carbon Dioxide, Hydrogen and some reactive gases.

SAFETY CAUTION: 316 Stainless Steel is not recommended for use with high pressure Oxygen.



REQUEST A QUOTE



1/4" Rigid monel-400 leads - 7000 psi

Weldcoa’s 1/4" 7000 PSIG Rigid Monel-400 Leads are used in many Industrial, Medical and Specialty gas charging and discharge applications. A typical application is where cylinders are permanently manifolded together such as with cylinder carts and banks, where the leads are disconnected infrequently. Monel-400 is compatible with the most common Industrial and Specialty gases including Oxygen, Argon, Nitrogen, Helium, Carbon Dioxide, Hydrogen and some reactive gases. Monel-400 leads are particularly for use with high pressure Oxygen.



REQUEST A QUOTE

Each Lead Comes With a 1 year warranty

For a period of one (1) year from the date of sale by Weldcoa, Weldcoa warranties the hose assembly and any component incorporated therein used in the transmission of compressed gas or cryogenic fluids to be free from manufacturing defects. These warranties shall be void if such hose and/or armor casing has been used in corrosive gas application or has otherwise been subject to abuse. If this warranty is in effect, Weldcoa's only obligation hereunder will be to provide replacement hose as the case may be, for any portion proven to have such defect or, at Weldcoa's option, to refund the purchase. User assumes all other risk, if any, including the risk of injury, loss or damage whether direct consequences or incidental arising out of the use, misuse or inability to use this product. Weldcoa disclaims all implied warranties of merchantability and fitness for a particular purpose.

For any questions, please feel free to contact us at (630) 806-2000 or email us at sales@weldcoa.com
