DOUBLE YOUR WORKING PAYLOAD

Great option for doubling your working payload on all small cylinder and dry goods

INTERCHANGEABLE

Upper and lower pallets are interchangeable

MECHANICALLY LOCKS

Weldcoa’s patented Sur-Loc™ pallet system is one of the only systems that mechanically locks onto the transportation structure

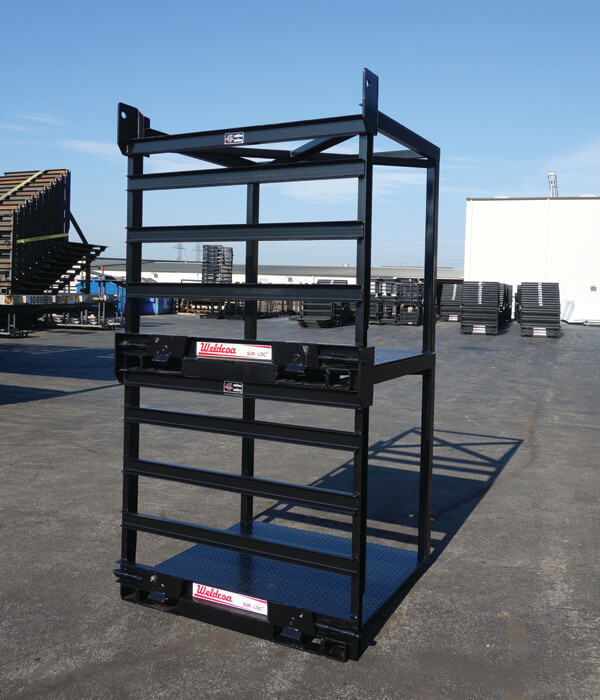

  • 4-Rail-StackLoc-DoubleStacked-FrontView
    High quality product made in-house
    100% made in the use

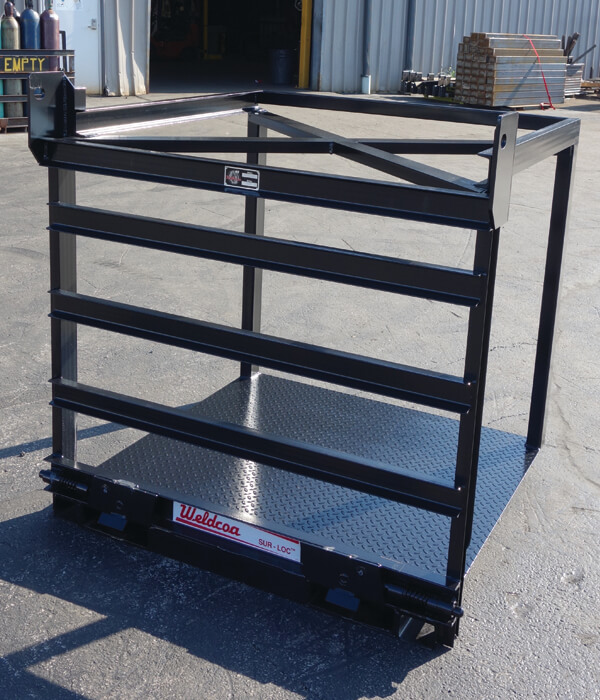

  • 4-Rail-StackLoc-Single
    single stac-loc pallet - part number ipst4r-bk

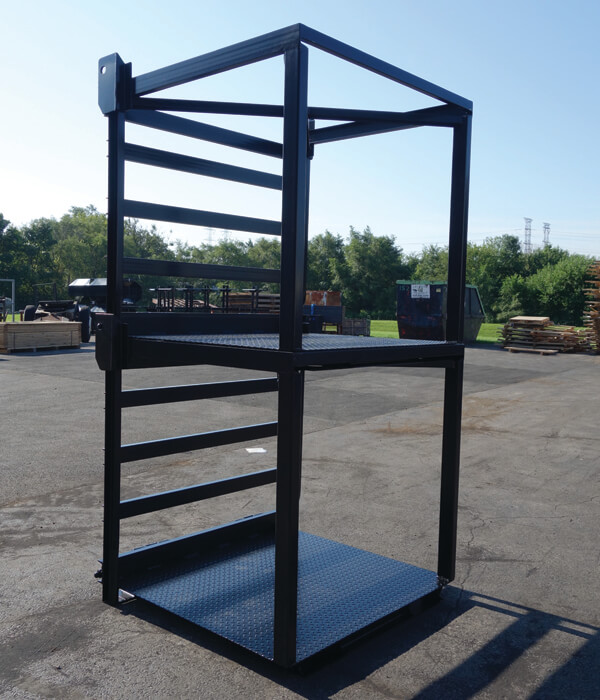

  • 4-Rail-StackLoc-DoubleStacked-BackView
    two stack-loc pallets stacked on top of each other.

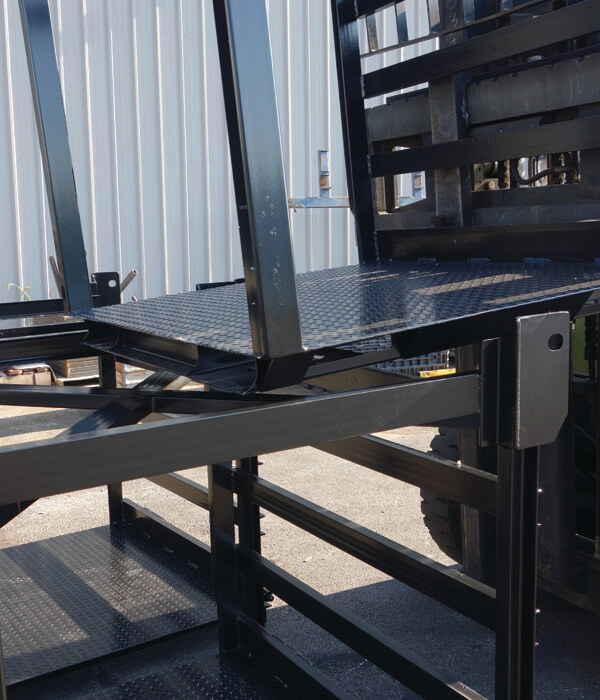

  • 4-Rail-StackLoc-Loading
    our sur-loc™ locking system complies with federal dot regulations 49 cfr 393.102 & cfr 177.840

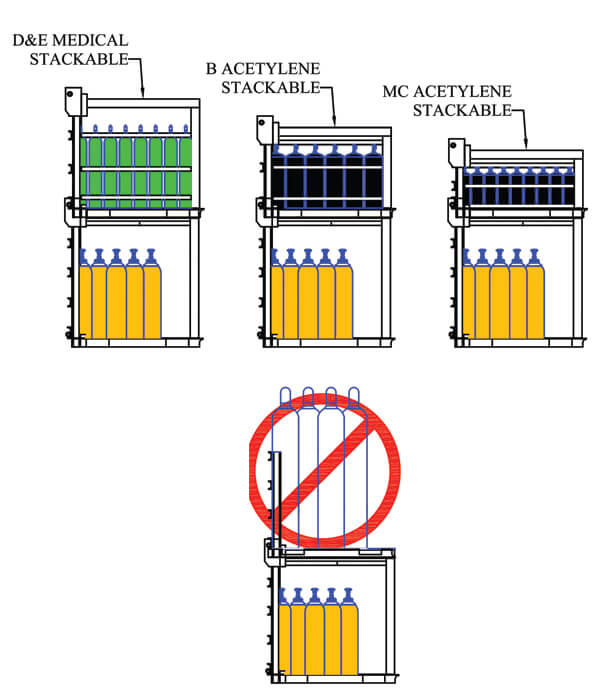

  • 4-Rail-StiackLoc-Guidelines
    4-rail stack-loc pallets may have at most, one stack-loc pallet (4-rail, mc, b or D&E) placed on it. This particular product is not intended for standard sur-loc pallets.

REQUEST A QUOTE


4-Rail STack-loc™ Pallet

IPST4R-BK
Stack-Loc Pallet - 4 Rail Model, Professionally Powder-Coated in Black.

IPST4R-cr
Stack-Loc Pallet - 4 Rail Model, Professionally Powder-Coated in Cardinal Red.

IPST4R-so
Stack-Loc Pallet - 4 Rail Model, Professionally Powder-Coated in Safety Orange.

IPST4R-WB
Stack-Loc Pallet - 4 Rail Model, Professionally Powder-Coated in Weldcoa Blue.

IPST4R-SY
Stack-Loc Pallet - 4 Rail Model, Professionally Powder-Coated in Safety Yellow.

IPST4R-JG
Stack-Loc Pallet - 4 Rail Model, Professionally Powder-Coated in John Deere Green.





4-Rail Stack-Loc™ Pallet

The Stack-Lok™ Pallet is a traditional Weldcoa Sur-Loc™ 4-Rail Pallet with added vertical supports and an X frame for rigidity. Designed to be very versatile. Great option for doubling your working payload on all small cylinder and dry goods. Our locking system has evolved over the years and complies with Federal DOT Regulations 49 CFR 393.102 & CFR 177.840.


PATENT AND PROVEN 4-POINT LOCKING SYSTEM DESIGN

  • Weldcoa’s patented Sur-Loc™ pallet system is one of the only systems that mechanically locks onto the transportation structure. If the entire truck/trailer structure rotated 180 ̊, the pallets would remain locked onto the frame.
  • All Weldcoa pallets have 4-way entry and are self-aligning when positioned into a pallet truck or trailer.
  • The fork pockets are re-enforced to eliminate the possibility of broken plates.
  • Automatic Safety Feature - Pallet truck forks automatically engage and disengage the mechanical locks.
  • Visible Safety Check Feature - Drivers and managers can clearly see if the lock mechanism is properly engaged prior to transporting cargo.
  • Compliant with Federal DOT Regulations 49 CFR 393.102 and CFR 177.840

Features and Benefits

  • Effectively doubles your working payload on all small cylinders and dry goods
  • Features all of the benefits and safety of a Sur-Loc™ pallet and more
  • The pallets lock onto each other in the same way they would be secured on to our pallet trucks and trailers
  • A maximum odf 2,000 lbs. can be carried on the upper pallet
  • The payload is held in place through the use of traditional binder straps
  • The binder straps are rated at 10,000 lbs. breaking strength
  • The upper and lower pallets are interchangeable and require no more skill than what is already required to load a pallet vehicle
  • Holds up to (26) 7" Diameter Cylinders (80 Cubic Foot and Smaller)
  • The deck of the Stack-Loc™ 4-Rail Pallet is 51 3/4" wide x 46" deep
  • The height of the pallet is 52 1/4" tall. The Height of two pallets stacked is 97 3/4" H
  • The pallet deck can accommodate any standard 4’ x 4’ wood pallet and cargo
  • The corners of the diamond plate deck have been blunted for improved safety
  • The pallet base is structurally sound
  • All of our pallets are manufactured on a robotic welders. The only aspect of the pallet that is done by hand are the internal components of the lock mechanism which are welded by Certified Welders.
  • A grease reservoir that lubricates all of the moving parts every time the lock is actuated (We recommend using an anti-seize compound rather then grease to lubricate the pallet locks)
  • Entire pallet is professionally powder-coated for protection from wear, corrosion, impact, and weather.
  • Standard powder-coated paint is available in Black, Cardinal Red, Safety Orange, Weldcoa Blue, Safety Yellow and John Deere Green.
  • 100% Made in the USA



What to expect from Weldcoa

All Weldcoa Pallets are fully built 100% at Weldcoa. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.
