LOCKED AND SECURE

Designed specifically to alleviate the portability and security problems normally associated with transporting and handling smaller cylinders

CAN CARRY UP TO 81 CYLINDERS

Each cylinder is individually secured within the frame

MECHANICALLY LOCKS

Weldcoa’s patented Sur-Loc™ pallet system is one of the only systems that mechanically locks onto the transportation structure

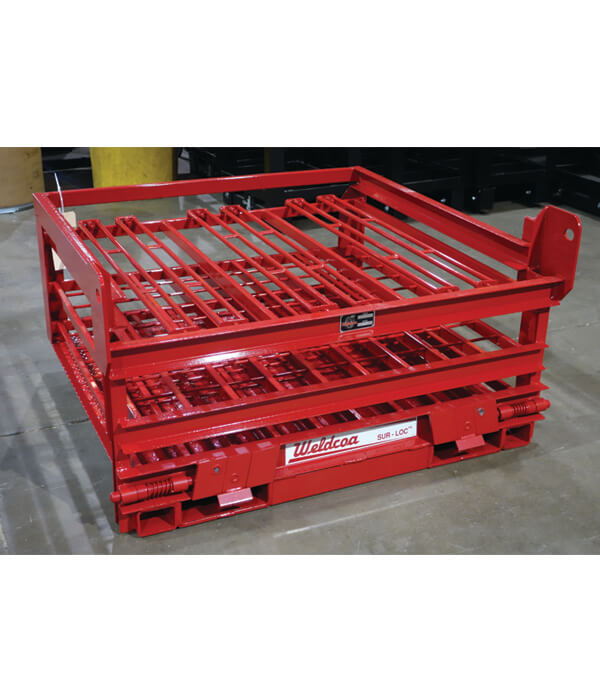

  • IPSTMC-CR
    high quality product made in-house
    100% made in the USA

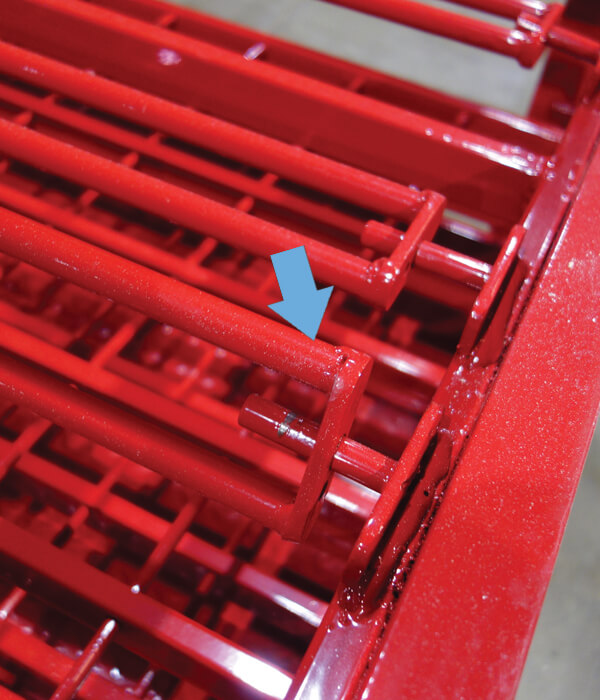

  • MC Pallet Clamp
    each cylinder is individually secured within the frame. This prevents the cylinders from escaping but also prevents label damage
  • Stack-Loc B Pallet Side View
    (3) mc stack-loc pallets stacked - Side View

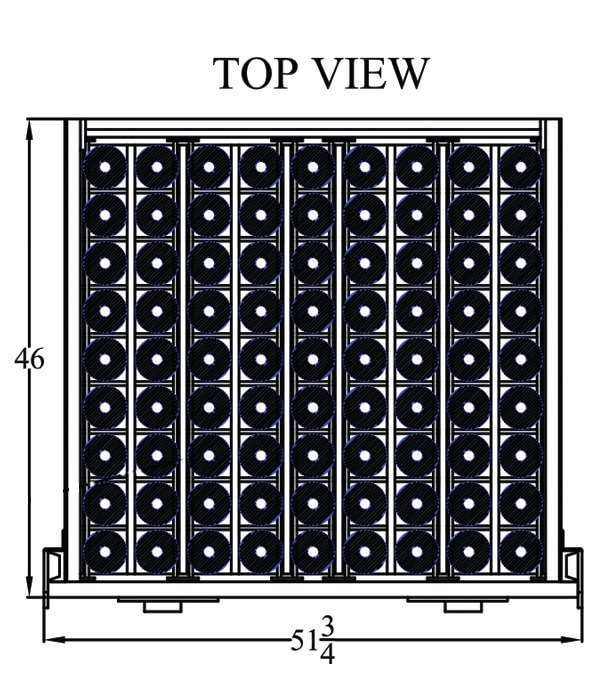

  • MC Pallet- TopView
    mc stack-loc pallet - top view
  • Stack-loc B Pallet Guidelines 1
    stack-loc mc pallets may have at most, one non-acetylene stack-loc pallet (either a 4-rail stack-loc or medical d&E) placed on it. This particular product is not intended for standard sur-loc pallets.

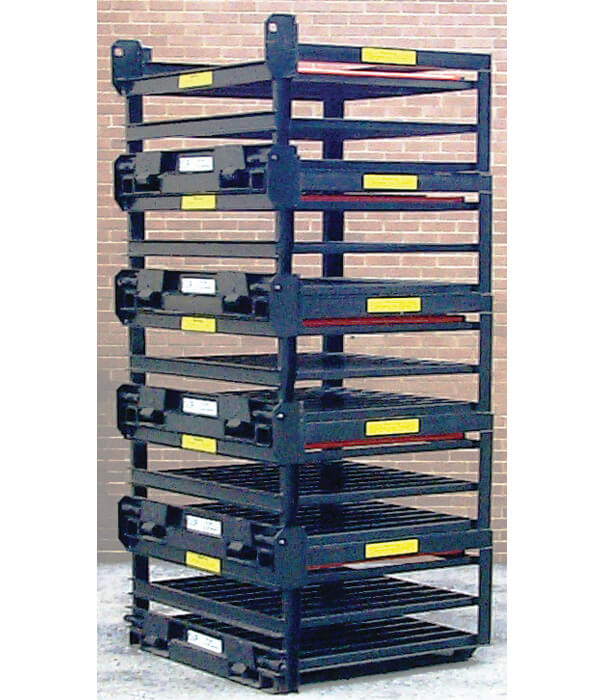

  • MC Pallet Stacked 5 High
    can be stacked (5) MC stack-loc pallets high at a time for storage in your facility or yard. That is 405 "MC" Acetylene cylinders in a single pallet footprint!



REQUEST A QUOTE


stack-loc™ mc acetylene pallet options

IPSTMC-BK
Stack-Loc Pallet - MC Acetylene Model, Professionally Powder-Coated in Black.

IPSTMC-so
Stack-Loc Pallet - MC Acetylene Model, Professionally Powder-Coated in Safety Orange.

IPSTMC-wb
Stack-Loc Pallet - MC Acetylene Model, Professionally Powder-Coated in Weldcoa Blue.

IPSTMC-BK
Stack-Loc Pallet - MC Acetylene Model, Professionally Powder-Coated in Safety Yellow.

IPSTMC-BK
Stack-Loc Pallet - MC Acetylene Model, Professionally Powder-Coated in John Deere Green.





Stack-Loc™ MC Acetylene Pallet

The Stack-Loc™ MC Acetylene Pallet was designed specifically to alleviate the portability and security problems normally associated with transporting and handling smaller cylinders. Each cylinder is individually secured within the frame. This not only prevents the cylinders from escaping but also prevents label damage.


PATENT AND PROVEN 4-POINT LOCKING SYSTEM DESIGN

  • Weldcoa’s patented Sur-Loc™ pallet system is one of the only systems that mechanically locks onto the transportation structure. If the entire truck/trailer structure rotated 180 ̊, the pallets would remain locked onto the frame.
  • All Weldcoa pallets have 4-way entry and are self-aligning when positioned into a pallet truck or trailer.
  • The fork pockets are re-enforced to eliminate the possibility of broken plates.
  • Automatic Safety Feature - Pallet truck forks automatically engage and disengage the mechanical locks.
  • Visible Safety Check Feature - Drivers and managers can clearly see if the lock mechanism is properly engaged prior to transporting cargo.
  • Compliant with Federal DOT Regulations 49 CFR 393.102 and CFR 177.840

Features and Benefits

  • Holds up to (81) "MC"  Acetylene Cylinders
  • Can be stacked (5) MC Stack-Loc Pallets high at a time for storage in your facility or yard.  That is 405 "MC" Acetylene cylinders in a single pallet footprint!
  • Twist lock mechanism securely locks cylinders vertically onto frame.
  • To protect the cylinder valve, the pallet has been designed with adequate height clearance in mind
  • The pallets lock onto each other in the same way they would be secured on to our pallet trucks and trailers
  • Works with any Weldcoa Sur-Loc™ pallet truck or trailer
  • The MC pallet is interchangeable and requires no more skill than what is already required to load a pallet vehicle
  • Each cylinder is individually secured within the Stack-Loc's frame. This prevents the cylinders from escaping but also prevents label damage
  • The deck of the MC pallet is 51 3/4" wide x 46" deep
  • The height of a single MC pallet is 27 1/2" high
  • The height of two MC pallets stacked is 48 3/8" high
  • The height of three MC pallets stacked is 69 1/4" high
  • The pallet base is structurally sound
  • A grease reservoir that lubricates all of the moving parts every time the lock is actuated (We recommend using an anti-seize compound rather then grease to lubricate the pallet locks)
  • Entire pallet is professionally powder-coated for protection from wear, corrosion, impact, and weather.
  • Standard powder-coated paint is available in Black, Cardinal Red, Safety Orange, Weldcoa Blue, Safety Yellow and John Deere Green.
  • 100% Made in the USA



What to expect from Weldcoa

All Weldcoa Pallets are fully built 100% at Weldcoa. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.
