STRONGEST, MOST DEPENDABLE PALLETS IN THE INDUSTRY

All manufactured at Weldcoa’s Aurora, IL USA facility by robotic welders to ensure precision

VISIBLE SAFETY CHECK

Drivers and managers can clearly see if the locks are properly engaged

100% Guaranteed

All Weldcoa Pallets are fully built 100% at Weldcoa. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

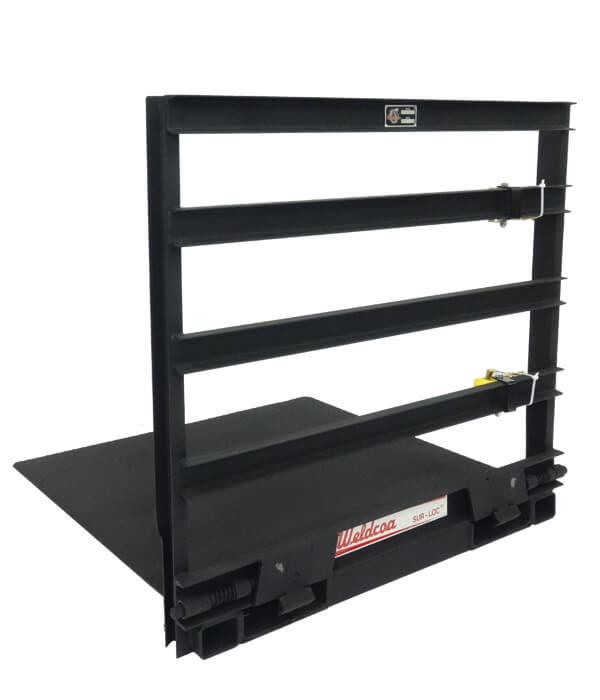

  • 4-Rail-BackView
    Part No. IPSL4R-BTNS-2
  • Marine-Paint
    Entire pallet is professionally powder-coated with black, textured, non-skid paint for added safety and to also protect from wear, corrosion, impact, and weather

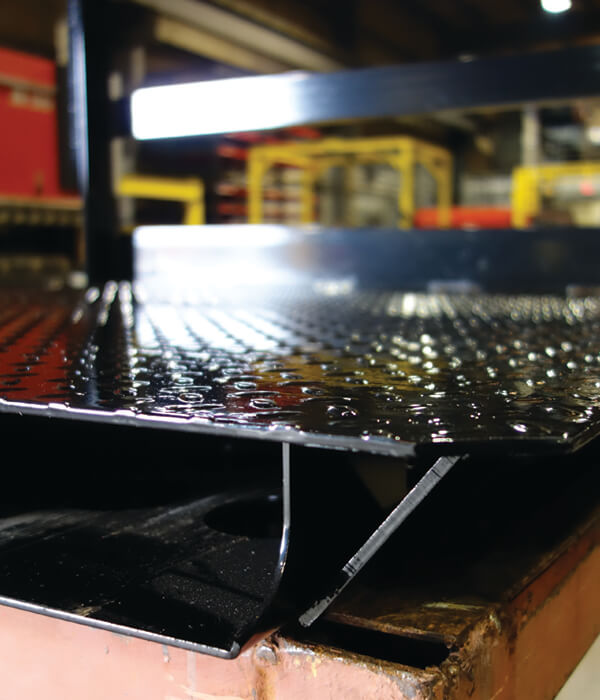

  • Standard-Powdercoat
    Standard powder-coated paint is also available in black, cardinal red, safety orange, weldcoa blue, safety yellow, and john deere green

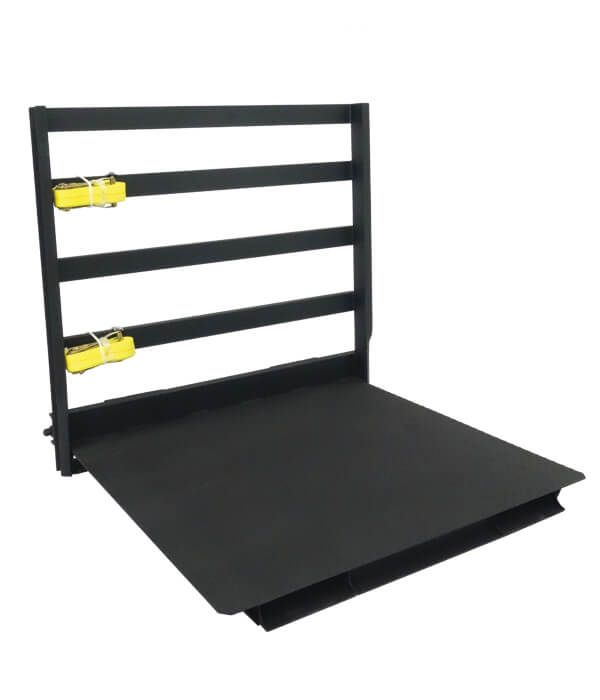

  • 4-Rail-FrontView
    Sur-Loc™ 4 Rail Pallet can be used to double stack propane cylinders

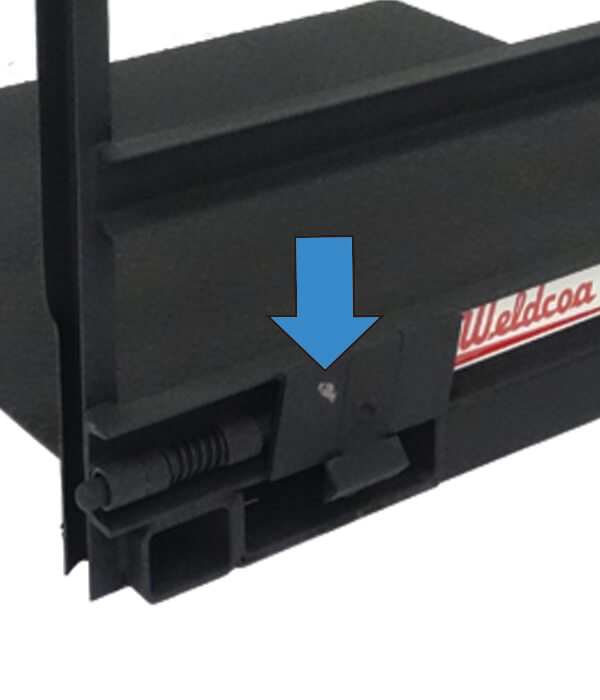

  • ZerkFittingPallet
    A grease reservoir lubricates all of the moving parts everytime the lock is actuated

REQUEST A QUOTE

4-Rail sur-loc™ Pallets with textured paint

IPSL4R-BTNS
Sur-Loc Pallet - 4 Rail, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

IPSL4R-BTNS-1
Sur-Loc Pallet - 4 Rail with (1) Strap and Bracket, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

IPSL4R-BTNS-2
Sur-Loc Pallet - 4 Rail with (2) Strap and Bracket, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

options with side rails

IPSL4R-BT3s
Sur-Loc Pallet - 4 Rail with (2) 3/4 Side Rails, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

IPSL4R-BT3s-1
Sur-Loc Pallet - 4 Rail with (2) 3/4 Side Rails and (1) Strap and Bracket, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

IPSL4R-BT3s-2
Sur-Loc Pallet - 4 Rail with (2) 3/4 Side Rails and (2) Strap and Bracket, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

IPSL4R-BT3F
Sur-Loc Pallet - 4 Rail with (2) Full Size Side Rails, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

IPSL4R-BT3F-1
Sur-Loc Pallet - 4 Rail with (2) Full Size Side Rails and (1) Strap and Bracket, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

IPSL4R-BT3F-2
Sur-Loc Pallet - 4 Rail with (2) Full Size Side Rails and (2) Straps and Brackets, Professionally Powder-Coated with Black Textured Non-Skid Paint.
Color: Black

4-Rail Sur-Loc™ Pallets

Weldcoa’s patented Sur-Loc™ pallet system is one of the only systems that mechanically locks onto the transportation structure. If the entire truck/trailer structure rotated 180 ̊, the pallets would remain locked onto the frame. Our locking system has evolved over the years and complies with Federal DOT Regulations 49 CFR 393.102 & CFR 177.840.


PATENT AND PROVEN 4-POINT LOCKING SYSTEM DESIGN

  • All Weldcoa pallets have 4-way entry and are self-aligning when positioned into a pallet truck or trailer.
  • The fork pockets are re-enforced to eliminate the possibility of broken plates.
  • Automatic Safety Feature - Pallet truck forks automatically engage and disengage the mechanical locks.
  • Visible Safety Check Feature - Drivers and managers can clearly see if the lock mechanism is properly engaged prior to transporting cargo.
  • Compliant with Federal DOT Regulations 49 CFR 393.102 and CFR 177.840

Features and Benefits

  • Can be used to double stack propane cylinders (28 per pallet, 14 on each level)
  • Holds up to 21 “T” cylinders (18 cylinders are recommended in order to have a center aisle on the truck body or trailer)
  • The deck of the Sur-Loc™ 4-Rail Pallet is 47 3/4" wide x 44 1/2" deep
  • The height of the pallet is 47 1/4" tall
  • The pallet deck can accommodate any standard 4’ x 4’ wood pallet and cargo
  • The corners of the diamond plate deck have been blunted for improved safety
  • The pallet base is structurally sound
  • All of our pallets are manufactured on a robotic welders. The only aspect of the pallet that is done by hand are the internal components of the lock mechanism which are welded by Certified Welders. We manufacture a complete pallet every 12 minutes.
  • A grease reservoir that lubricates all of the moving parts every time the lock is actuated (We recommend using an anti-seize compound rather then grease to lubricate the pallet locks)
  • Entire pallet is professionally powder-coated with black, textured, non-skid paint for added safety and to also protect from wear, corrosion, impact, and weather.
  • Standard powder-coated paint is also available in Black, Cardinal Red, Safety Orange, Weldcoa Blue, Safety Yellow and John Deere Green.
  • Side rails are an available option for those seeking added protection during loading and unloading at customer sites.
  • 100% Made in the USA



What to expect from Weldcoa

All Weldcoa Pallets are fully built 100% at Weldcoa. Weldcoa guarantees all of our structures to be free of manufacturing defects for life.

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.
