The Sur-Loc Pallet System. The Reliable System, that Mechanically Locks Onto the Transport Structure.



VISIBLE SAFETY CHECK

Drivers and managers can clearly see if the locks are properly engaged



STRONGEST, MOST DEPENDABLE PALLETS IN THE INDUSTRY

All manufactured at Weldcoa’s Aurora, IL USA facility by robotic welders to ensure precision

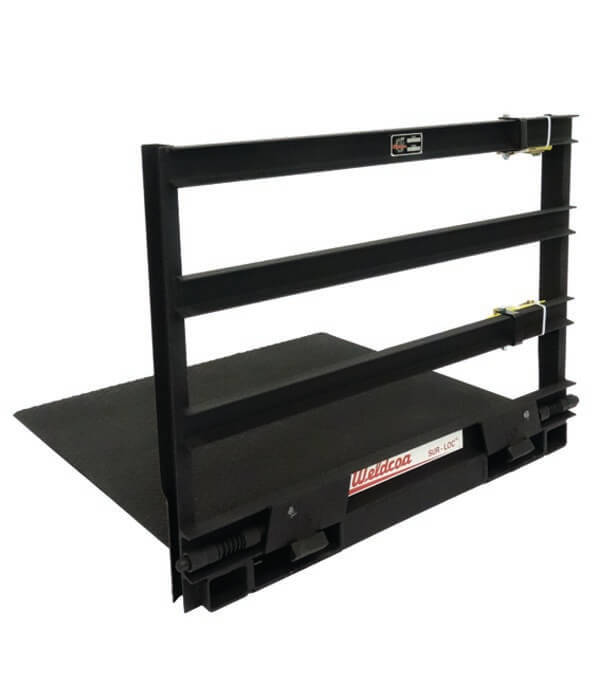

  • IPSL3R-BTNS
    3-Rail Sur-Loc Pallet
    Part No. IPSL3R-BTNS-2
  • IPSL3R-BKNS front angle
    Standard Pallet with No Side Rails
  • IPSL3R-BK3S Front Angle
    Standard Pallet with 3/4 Side Rails
  • IPSL3R-BK3F front angle
    Standard Pallet with Full Side Rails
  • WELDCOA PALLETS__2

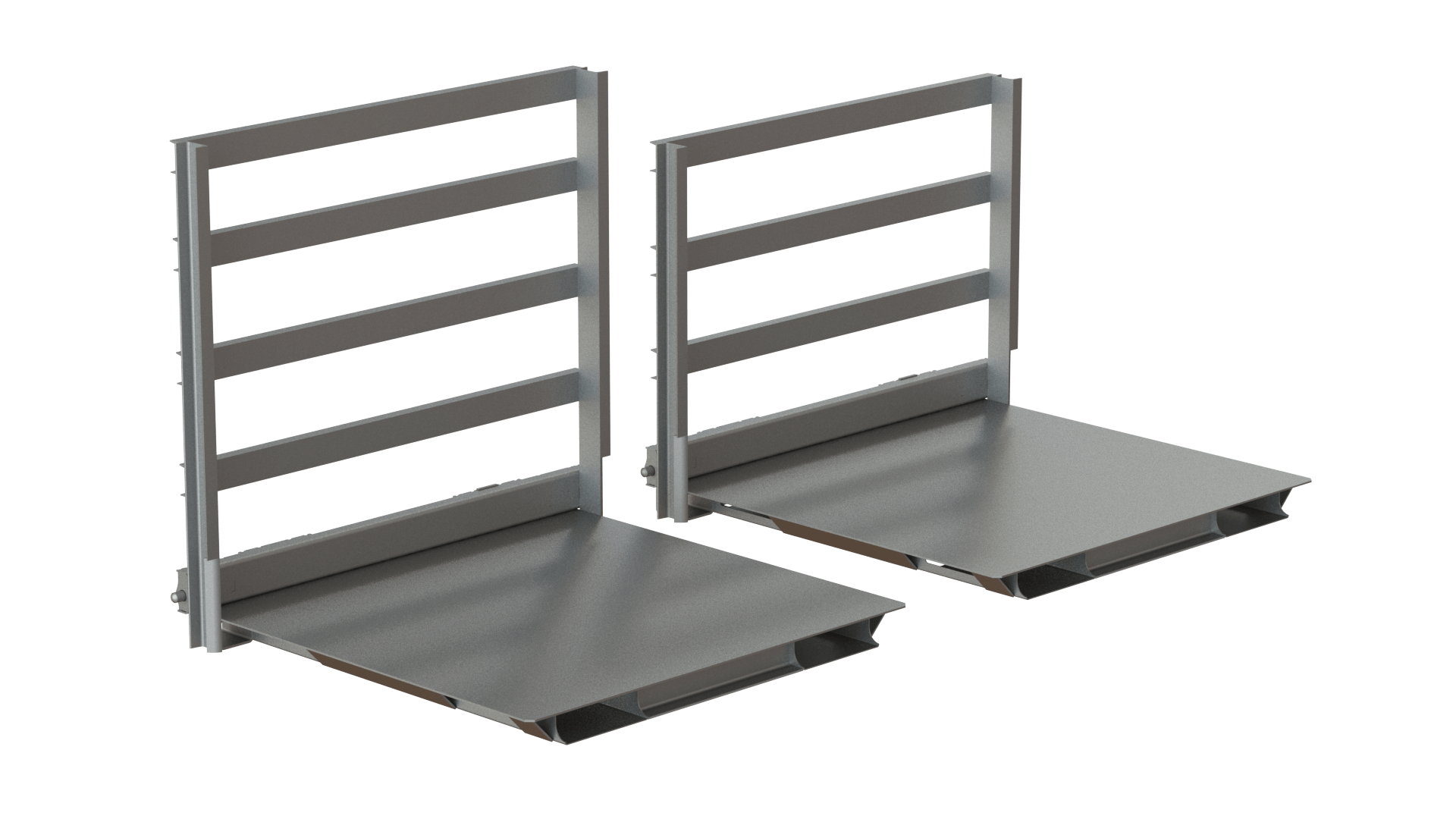

    Sur-Loc Pallet 3- and 4-Rail, No Sides

Ensure your load is secure during transport

The proven Sur-Loc pallet system is one of the only systems that mechanically locks onto the transportation structure. If the entire truck/trailer structure rotated 180°, the pallets would remain locked onto the frame. Within the US our system is in compliance with 49 CFR 393.102 and 49 CFR 177.840.

Detail that make a difference

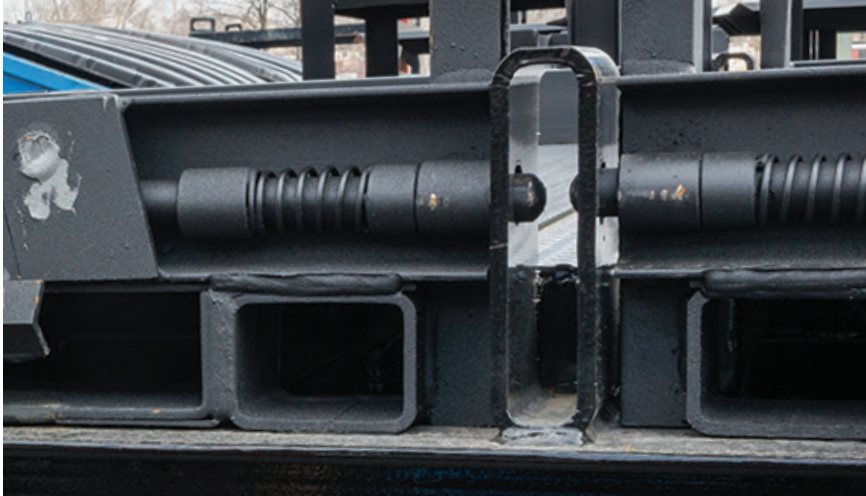

  • 4 point locking system mechanically locks onto transport structure
  • 4-way entry and are self-aligning when positioned into a pallet truck or trailer
  • The fork pockets are re-enforced to eliminate the possibility of broken plates
  • Automatic Safety - Pallet truck forks automatically engage and disengage the mechanical locks
  • Visible Safety Check - Drivers and managers can clearly see if the locks are properly engaged

Several style options available

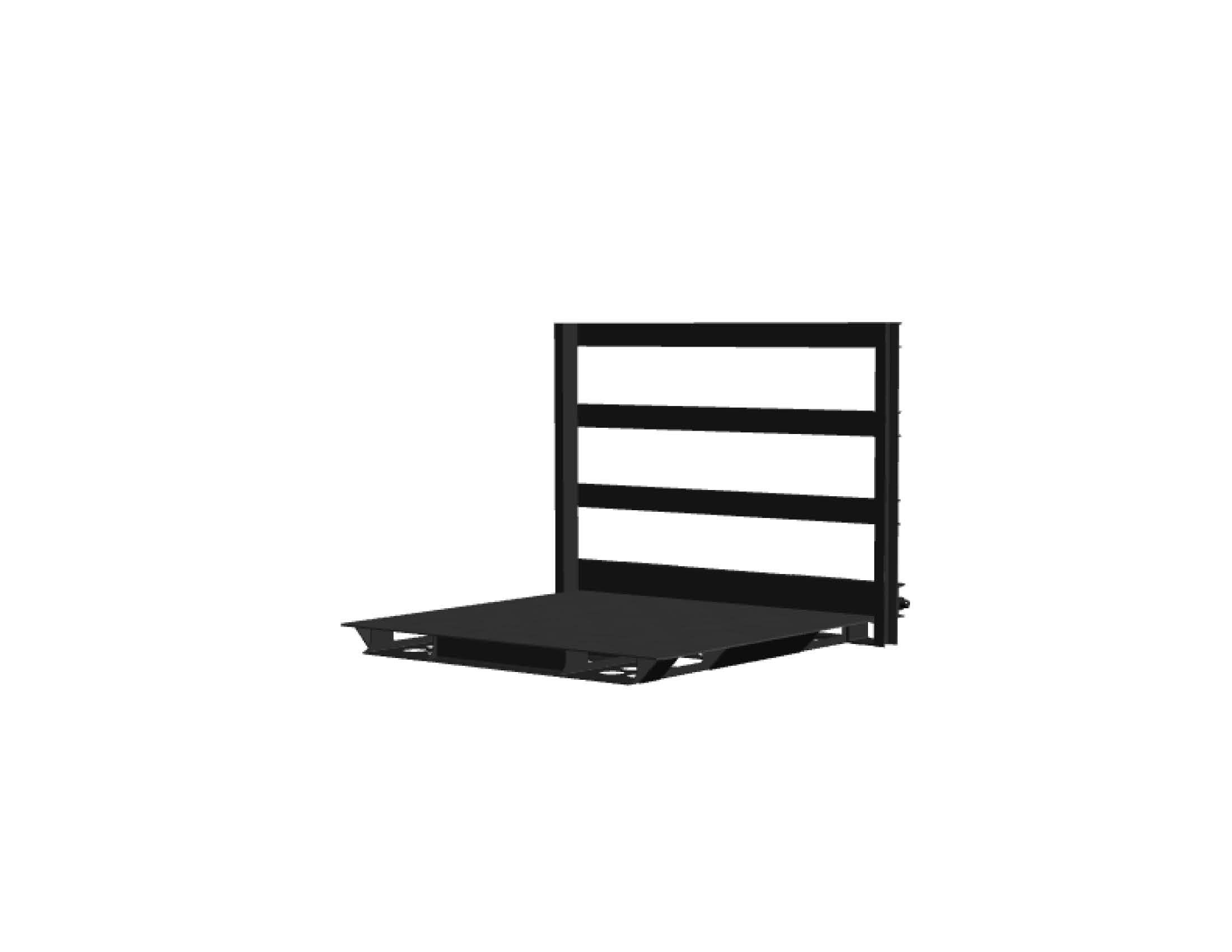

Standard Pallet with No Side Rails

IPSL3R-BKNS front angle
  • Most popular style

  • Available in both 3-Rail and 4-Rail models

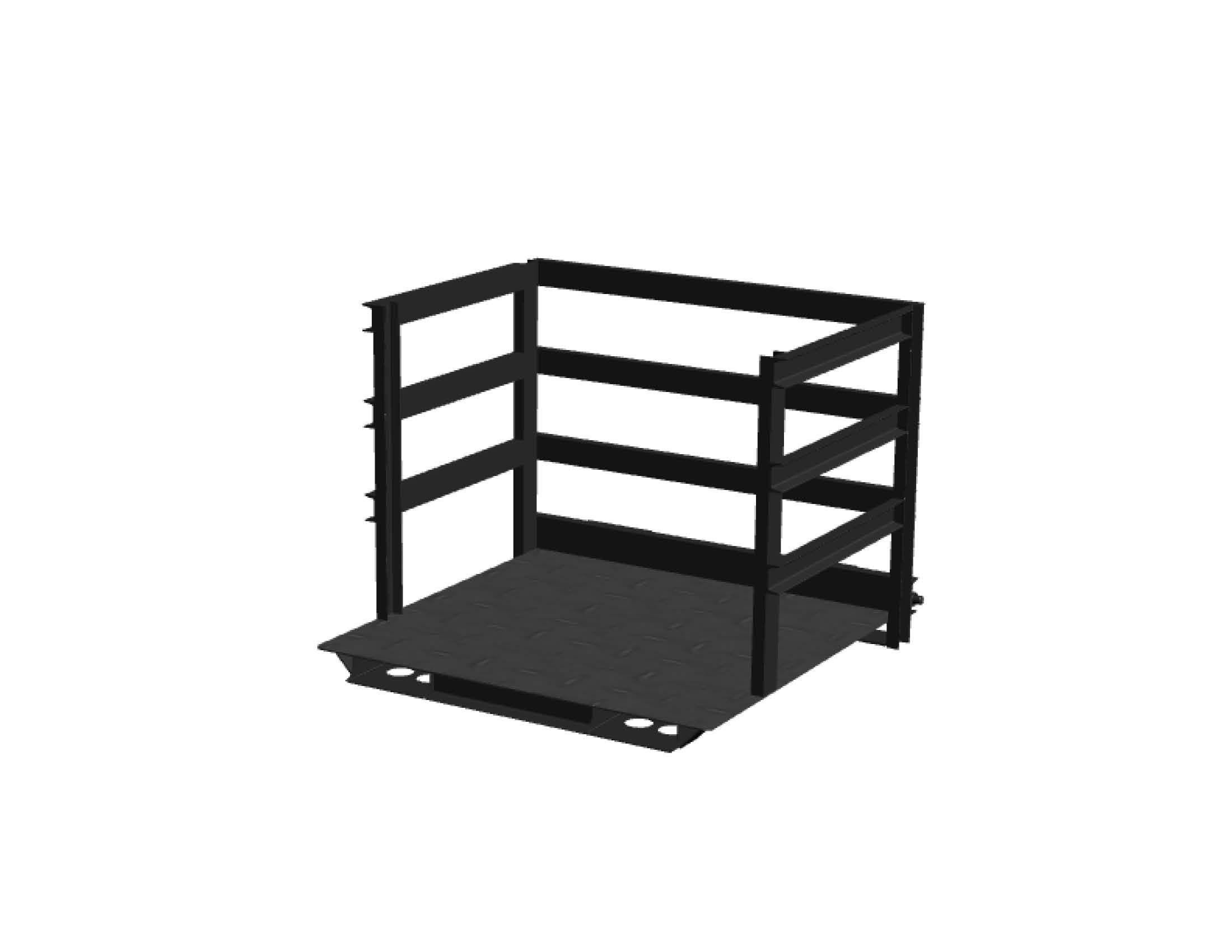

Standard Pallet with 3/4 Side RailsIPSL3R-BK3S Front Angle

  • Side rails provide added protection during loading and unloading at customer sites
  • Available in both 3-Rail and 4-Rail models

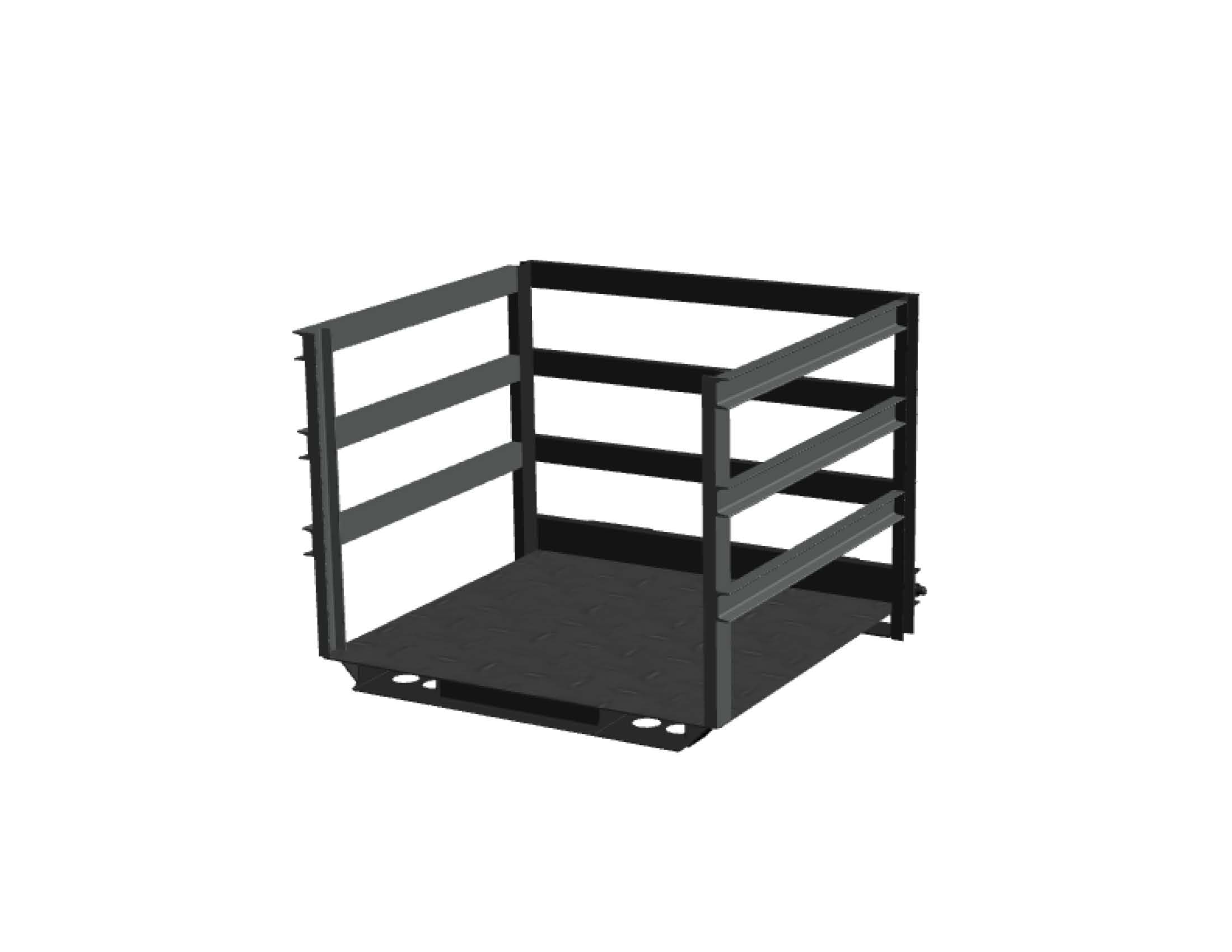

Standard Pallet with Full Side RailsIPSL3R-BK3F front angle

  • Side rails provide added protection during loading and unloading at customer sites
  • Available in both 3-Rail and 4-Rail models

REQUEST A QUOTE

Screen Shot 2022-04-04 at 4.48.53 PM



QUALITY CONSTRUCTION FOR ALL PALLET TYPES

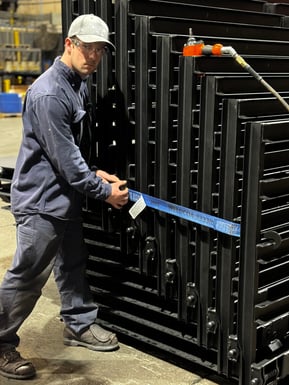

All Weldcoa Sur-Loc pallets are manufactured by robots at our facility to ensure quality welds and consistency, pallet after pallet. Pallets are available in many options for an array of gas cylinder types.

Screen Shot 2022-04-05 at 4.48.07 PM


structural capabilities

  • Holds up to 21 “T” cylinders (18 cylinders are recommended in order to have a center aisle)
  • The pallet deck can accommodate any standard 4’ x 4’ wood pallet and cargo
  • The corners of the diamond plate deck have been blunted for improved safety
  • 4-point patented locking system
  • The pallet base is structurally sound
  • Grease reservoir lubricates all of the moving parts every time the lock is actuated


standard Features and available options

  • Entire pallet is professionally powder-coated with black, textured, non-skid paint for added safety and to also protect from wear, corrosion, impact, and weather
  • Standard powder-coated paint is also available
  • Galvanizing is an available option for high corrosive environments
  • All of our pallets are manufactured by robots at our facility to ensure quality welds and consistency
  • 100% made in the USA

no side rails

IPSL3R-BTNS

3 Rail, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL3R-BTNS-1

3 Rail with (1) Strap and Bracket, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL3R-BTNS-2

3 Rail with (2) Straps and Brackets, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL4R-BTNS

4 Rail, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL4R-BTNS-1

4 Rail with (1) Strap and Bracket, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL4R-BTNS-2

4 Rail with (2) Straps and Brackets, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

With side rails

IPSL3R-BT3S

3 Rail with(2) 3/4 Side Rails, with Black Textured Non-Skid Paint

IPSL4R-BT3S

4 Rail with(2) 3/4 Side Rails, Professionally Powder-Coated with Black Textured Non-Skid Paint.


phone-call

have a special application?

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at solutions@weldcoa.com.

Contact Us TODAY

img-background

MYWELDCOA_logo FRAMED_black background_no tagline



Marine-Paint

Need a Grease Kit or replacement parts?

In need of pallet replacement straps and brackets or maybe maintenance items like grease kits for your pallet locking system? We have good news for you! MyWeldcoa.com is now available for you to easily order a wide selection of spare parts, replacement items and maintenance kits specifically for Weldcoa products when you need them, any time any day of the week! All items listed in MyWeldcoa.com have been purposely chosen by industry experts at Weldcoa, so you don't have to worry about knowing which component is compatible for what. All the think points are already handled for you.

We are with you long after your products are up and running, ready to help you maintain and grow your business.
